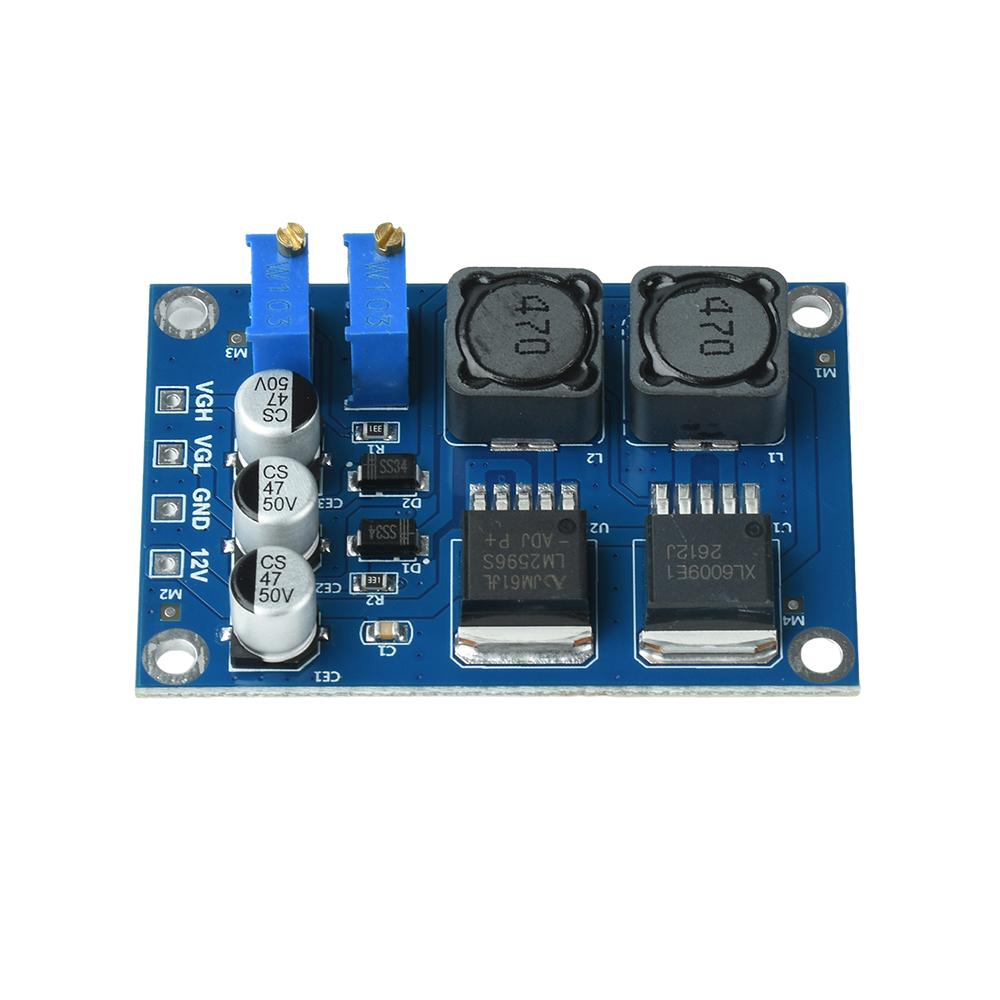

VGH VGL DC Module Repair LCD Panel Broken Y Color Abnormal Horizontal Line LCD Screen Technical Modification Repair Board

Quantity : 1 High-concerned chemical : none Package : SMD is_d : Yes Dissipation Power : / Supply Voltage : 12V Application : MOBILE PHONE Type : Module Brand Name : Gaqqee Operating Temperature : 0-50C Origin : Mainland China Condition : New wholesale : support dropshipper : support LCD Screen Repair : Broken Y repair horizontal thickness

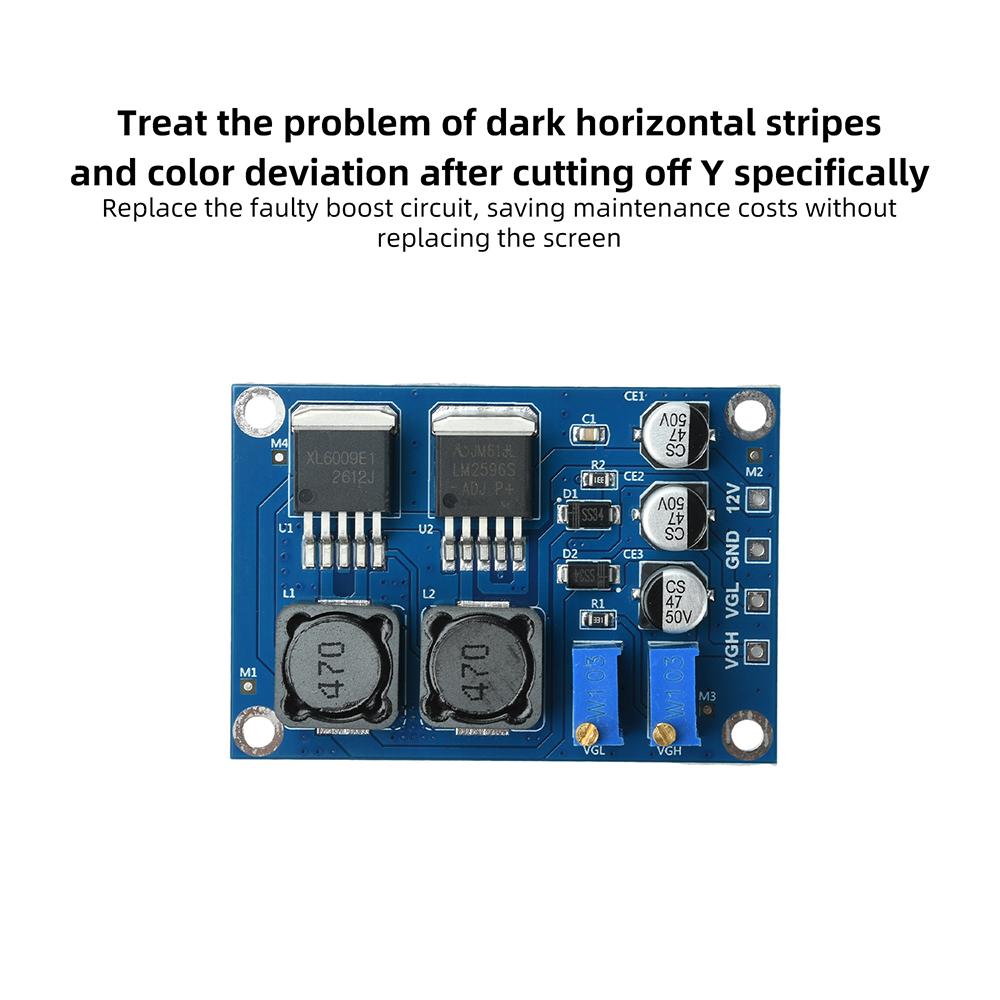

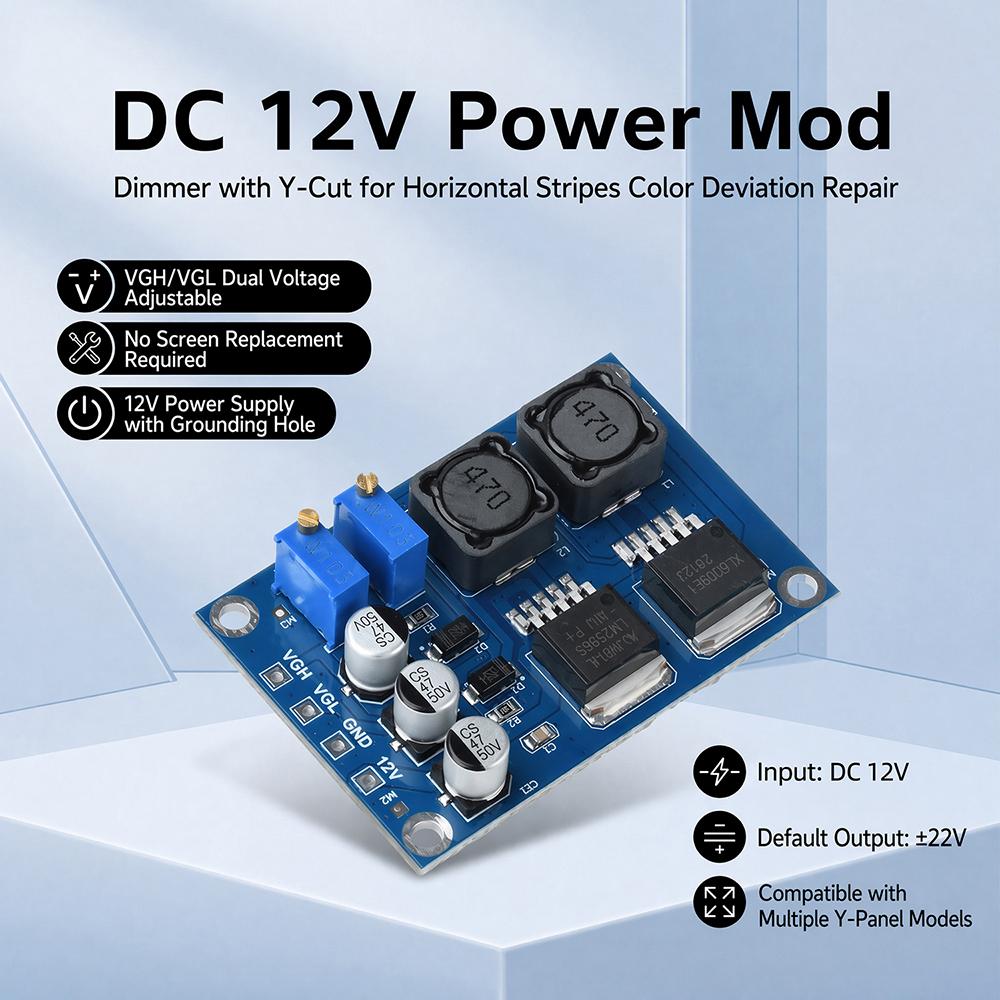

Product Features 1. Treat the problem of dark horizontal stripes and color deviation after cutting off Y, replace the faulty boost circuit, and save maintenance costs without changing the screen 2. VGH/VGL dual voltage independent adjustable, with up and down regulation, suitable for multiple screens 3. Compatible with multiple s of Y screens, both integrated boards and independent logic boards can be adapted for use 4. The voltage regulation range is wide, and the output of the voltage stabilization filter is pure, eliminating ripples and making the display more delicate 5.12V power supply with grounding screw hole, clear interface identification, easy wiring, even beginners can quickly get started

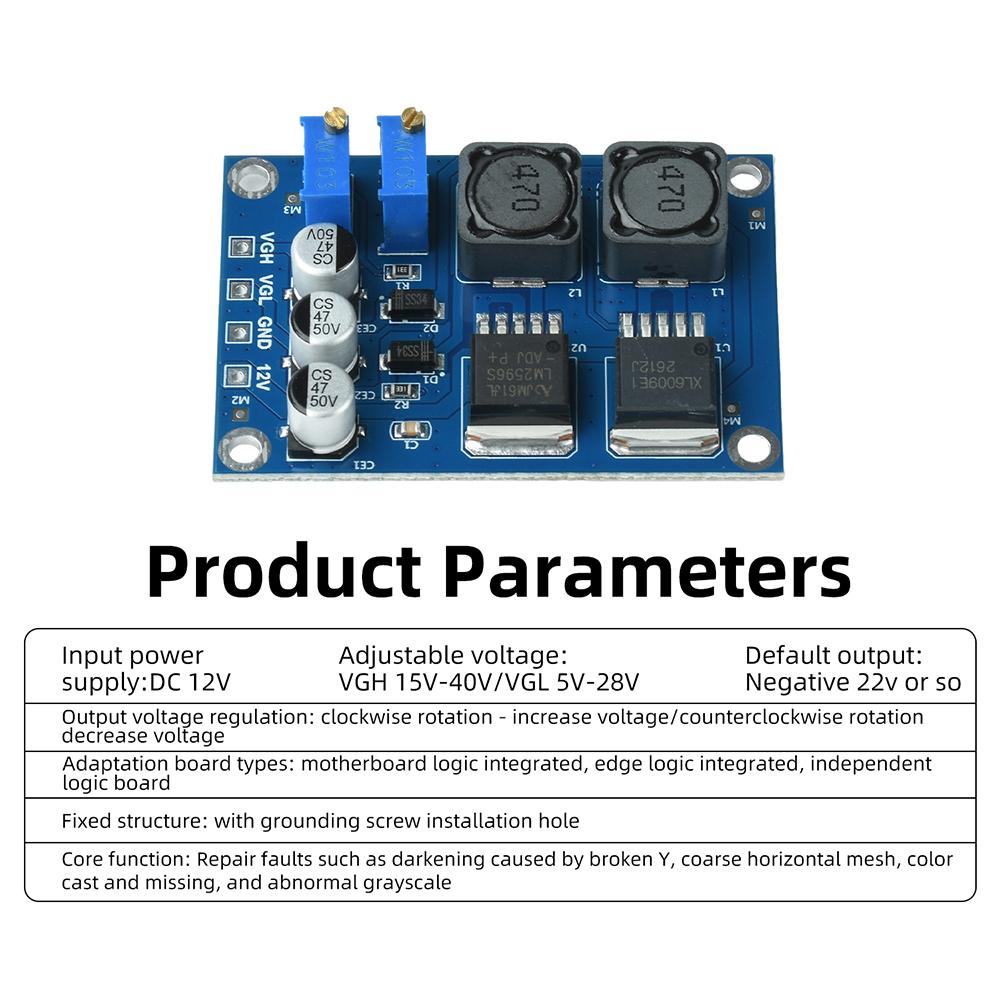

Product Specifications Input power supply: DC 12V Adjustable voltage: VGH 15V-40V; VGL 5V-28V Default output: around negative 22v Default output: positive 22v or so Output voltage regulation: Clockwise rotation - increase voltage Rotate counterclockwise - decrease voltage Adaptation board types: motherboard logic integrated, edge logic integrated, independent logic board Fixed structure: with grounding screw installation hole Core function: Repair faults such as darkening caused by broken Y, coarse horizontal mesh, color cast and missing, and abnormal grayscale

Product List: 1X module label:yes
