2.8'' 240X320 ESP32 Smart Display WiFi Bluetooth Dual Core Module for IoT Sensor Data Visualization Projects

Product Introduction: Ideal for IoT development, smart control projects, and hobbyist DIY builds, this ESP32 display module adopts the ESP32-WROOM-32 core chip, a dual-core MCU that supports both Wi-Fi and Bluetooth connectivity, with a maximum main frequency of 240MHz. It is configured with 520KB , 448KB ROM, and 8MB combined Flash memory (4MB + 4MB), matched with a 2.8-inch 240*320 resistive touch display. The module integrates all necessary circuits including backlight adjustment, touch control, speaker driver, light sensing, and RGB LED control. It is also equipped with a TF card interface, UART port, DHT11 temperature and humidity sensor socket, and extended IO ports for custom connections. It is compatible with all major development platforms: IDE, ESP IDE, , and Mixly.

Product Highlights: - 2.8-inch TFT color screen supports 16-bit RGB 65K color rendering, delivering vivid and rich display effects - 240*320 high-definition resolution ensures clear and sharp display content - Factory pre-loaded with demo programs, no pre-setup required, plug and play after power supply - Onboard TF card slot allows you to expand storage easily for your project needs - Full set of development libraries and demo code are provided, helping you finish secondary development quickly - One-click program download function simplifies the programming process greatly - Reliable hardware design guarantees stable long-term operation without malfunction

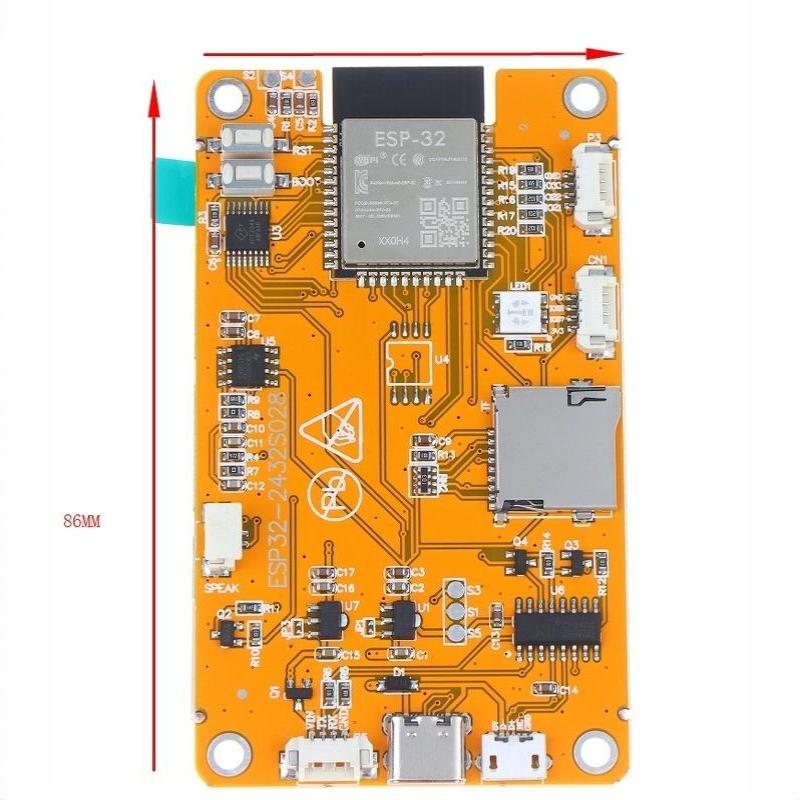

Technical Parameters: Materials: FR-4 PCB, LCD touch panel, electronic components, PVC insulated wire Display Driver Chip: ILI9341 Color Support: RGB 65K full color Touch Model: ESP32-2432S028R (resistive touch) Screen Diagonal: 2.8 inch Display Resolution: 320 x 240 pixels Active Display Size: 43.2 x 57.6 mm Overall Module Size: 50.0 x 86.0 mm Viewing Angle: Over 60 degrees Working Temperature Range: -20℃ to 70℃ Storage Temperature Range: -30℃ to 80℃ Input Voltage: 5V Typical Power Consumption: Around 90mA

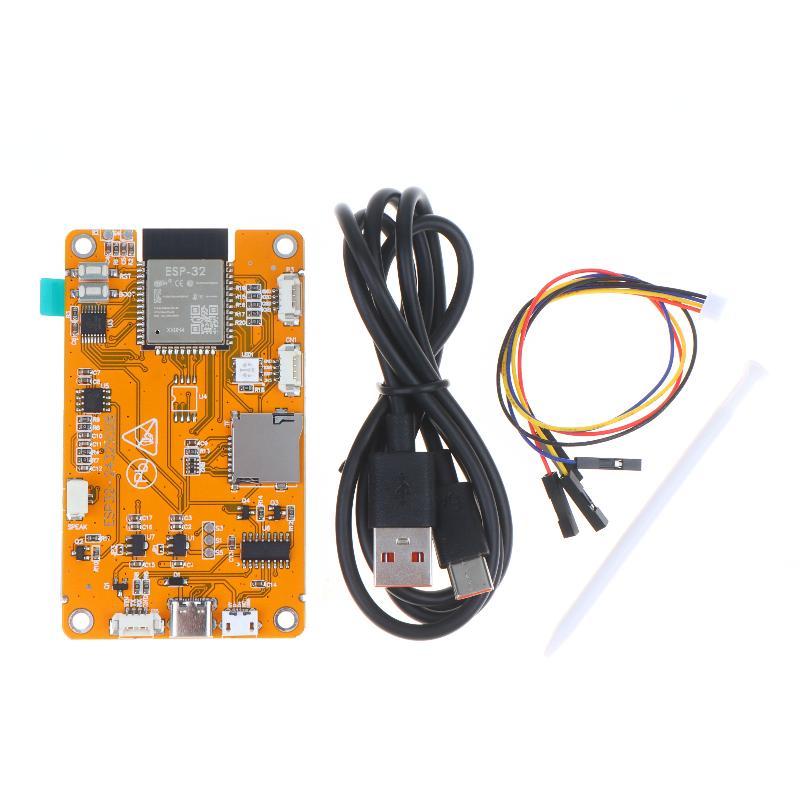

Packing List: 1 * 2.8-inch ESP32 Display Module 1 * USB Data Cable 1 * Stylus Pen for Touch Screen 1 * 4-Pin Connection Cable 1 * Plastic Protective Box for the Module

Warm Tips: 1. Slight size error may exist due to manual measurement, your kind understanding is highly appreciated. 2. The actual color of the product may differ a little from the pictures shown due to different monitor settings and lighting effects. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
