DC 3.7-6V to 200kV Booster Step-up High-voltage Generator Ignition Coil Pulse Power Module Igniter 4A High Frequency Converter

Features:

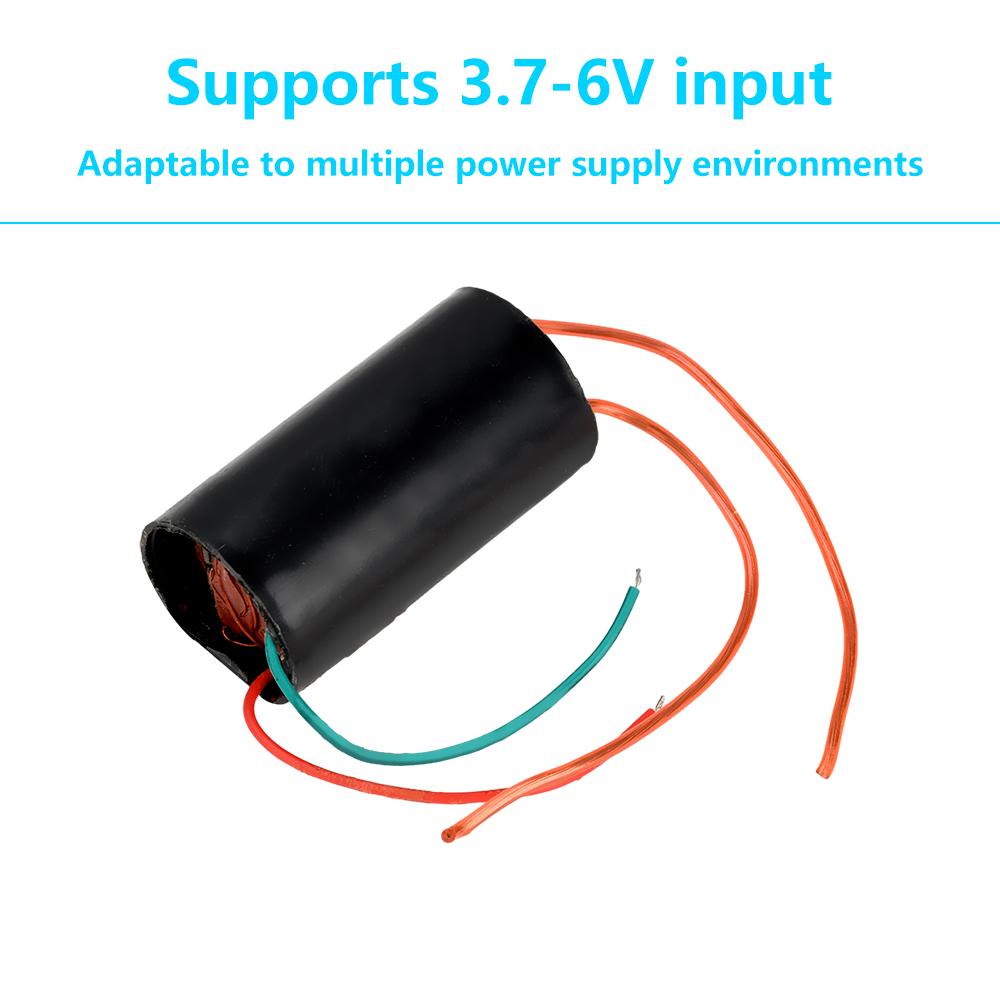

1. Supports 3.7-6V input, suitable for various power supply environments

2. Provides powerful performance, high efficiency, and intense discharge intensity

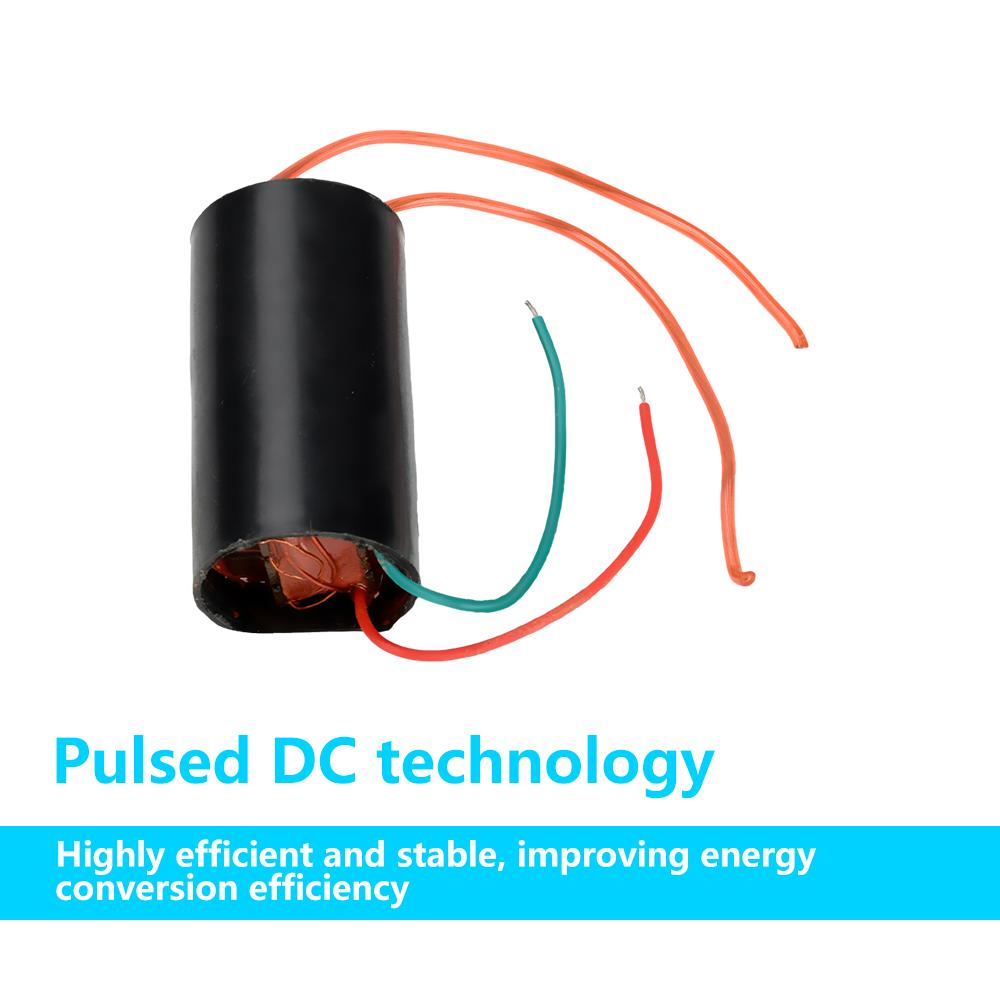

3. Pulse DC technology, efficient and stable, enhancing energy conversion efficiency

4. High-frequency boost design, fast response speed, and more stable output voltage

5. Output voltage up to 200kV, excellent performance, durable, and practical

Specifications:

Input Voltage: DC 3.7-6V

Input Current: 4A

Input Cable Length: Approximately 8CM

Output Voltage: 200KV

Output Current: 0.5A

Output cable length: Approximately 8 cm

High-voltage electrode discharge distance: 0.3 cm–1.2 cm

Regarding the input power source: A single 3.7V lithium battery or two batteries in series, such as 18650 batteries, or nickel-cadmium/nickel-metal hydride battery packs, 4V or 6V lead-acid batteries, etc. (6V batteries achieve the best results)

Product usage instructions:

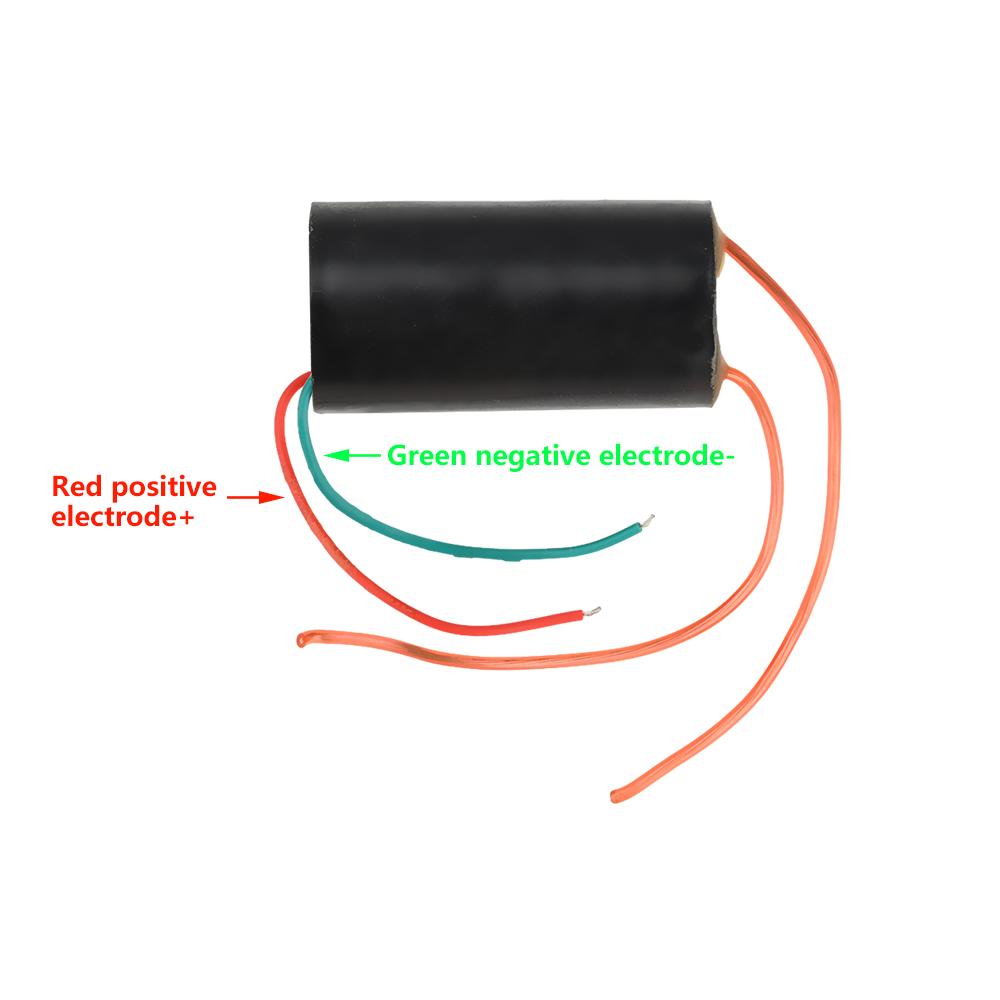

The module has input and output terminals. The red and green (white) wires are the input terminals, with red being positive and green (white) being negative. The two thick high-voltage wires of the same color are the output terminals. Secure the output terminals at an appropriate arc distance, connect the input terminals to the battery, and high-voltage or high-temperature arcs will be generated.

Important Notes for Module Use:

1. The high-voltage module should not be used under high-voltage no-load conditions. Before powering on, ensure the high-voltage wires are properly spaced. The arc distance is directly proportional to the battery voltage and capacity.

2. When testing the arc distance, start with a shorter distance and gradually increase it. Under no circumstances should the maximum arc distance be exceeded during operation, as the inability to release high-voltage energy can easily damage the module.

3. The module has high power and poor internal heat dissipation, so it should not be operated continuously for extended periods.

4. To determine if the battery capacity can drive the maximum output power, measure the battery voltage during arc generation. If the voltage is around 6V, the maximum power can be output.

5. For small-capacity lithium batteries, two cells in series provide 7.2V. During arc testing, the voltage drops to around 4V. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use lithium batteries with a capacity of 2000mAh or higher, and preferably 4000mAh or higher if possible.

Packing list:

High-voltage module*1

Package: TQFP Product Name: High-voltage Generator Ignition Module Choice: yes Origin: Mainland China Type: Module Supply Voltage: DC 3.7-6V is_customized: Yes Condition: New Quantity: 1 Operating Temperature: high-voltage generator Brand Name: NONE Dissipation Power: Boost Step up Power Module Feature: Pulse DC Booster High-concerned chemical: none Application: Electric Toy
