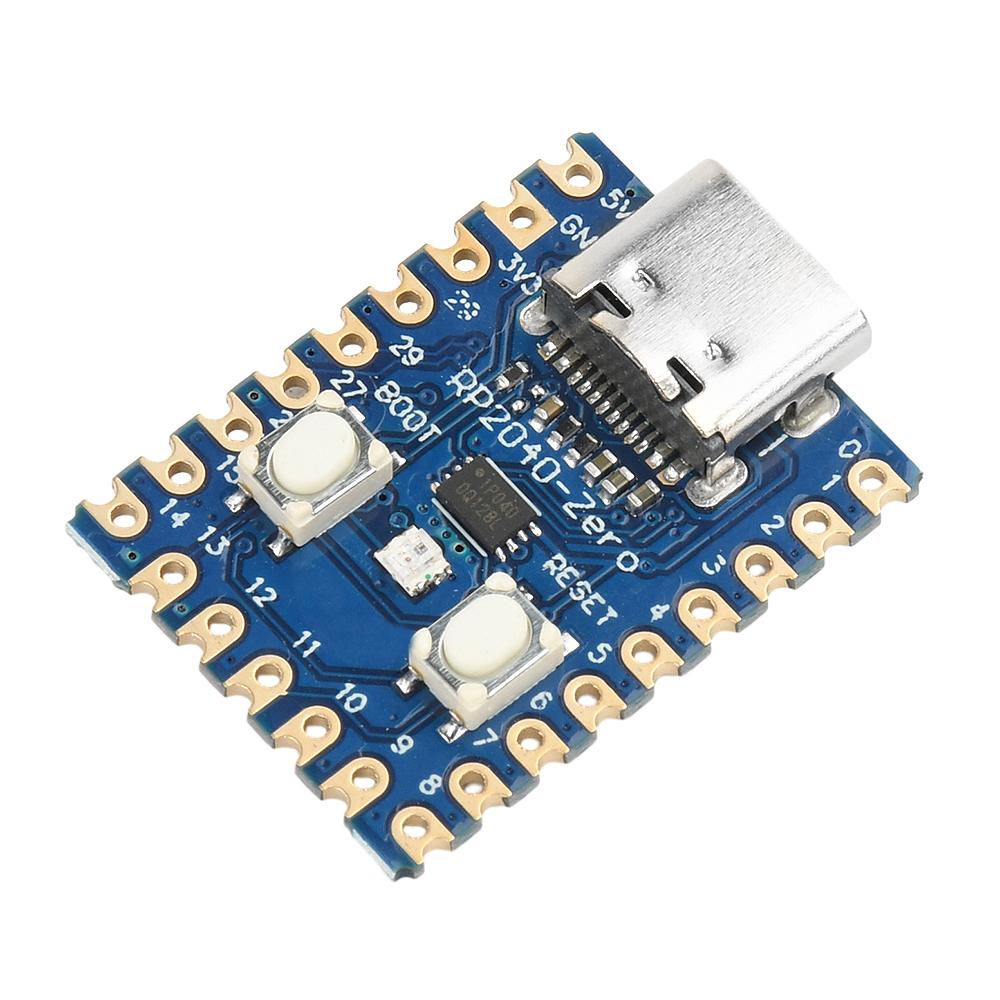

RP2350-Zero RP2040-Zero for Raspberry Pi Microcontroller PICO Development Board Type C Without Pin Header

High-concerned chemical : none Type : Module Brand Name : diymore Origin : Mainland China Condition : New

Features: 1.Based on the RP2350A microcontroller core chip, all unoccupied pins are led out in a very small board size. 2. Adopting a half hole process, it can be welded onto custom boards. 3. Adopting Type-C interface, keeping up with the trend of the times, there is no need to worry about forward and backward insertion. 4. Unique dual core and dual architecture, equipped with dual core processors, with a clock operating frequency of up to 150MHz. 5. Supports C/C++, MicroPython comes with a comprehensive SDK and open-source tutorials, making it easy to get started and quickly embed into applications. Parameter: Adopting RP2350A microcontroller chip Unique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, with a clock operating frequency of up to 150MHz Built in 520KB SRAM and 4MB on-chip Flash Adopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertion Stamp hole design, can be directly welded and integrated into the user's self-designed base plate Supports USB 1.1 hosts and devices Support low-power sleep and sleep mode Can be recognized as a large capacity storage device through USB for drag and drop downloads 29 GPIO pins of RP2350A can be led out (20 can be led out through pin headers, the rest can only be soldered out) 2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, 24 controllable PWM channels Accurate on-chip clock and timer Built in temperature sensor On-chip accelerated floating-point library 12 programmable I/O (PIO) state machines for custom peripheral support Voltage regulator chip LDO 800mA Appearance size 23.5mm * 18mm Package include: 1X development board

Specification: Adopt RP2040 microcontroller chip Equipped with a dual-core ARM Cortex M0+ processor, the operating frequency is up to 133MHz flexible clock. Built-in 264KB SRAM and 2MB on-chip Flash The real stamp hole design can be directly welded and integrated into the bottom plate designed by the user. USB1.1 host and device support Supports low power sleep and hibernate modes Drag-and-drop program download via USB recognition as mass storage 29 GPIO pins of RP2040 are led out (20 can be led out through pin headers, and the rest can only be led out by soldering) 2 SPIs, 2 12Cs, 2 UARTs, 4 12-bit ADCs, 16 controllable PWM channels. Accurate on-chip clocks and timers Temperature Sensor On-chip accelerated floating-point library 8 programmable I/O (PIO) state machines for custom peripheral support

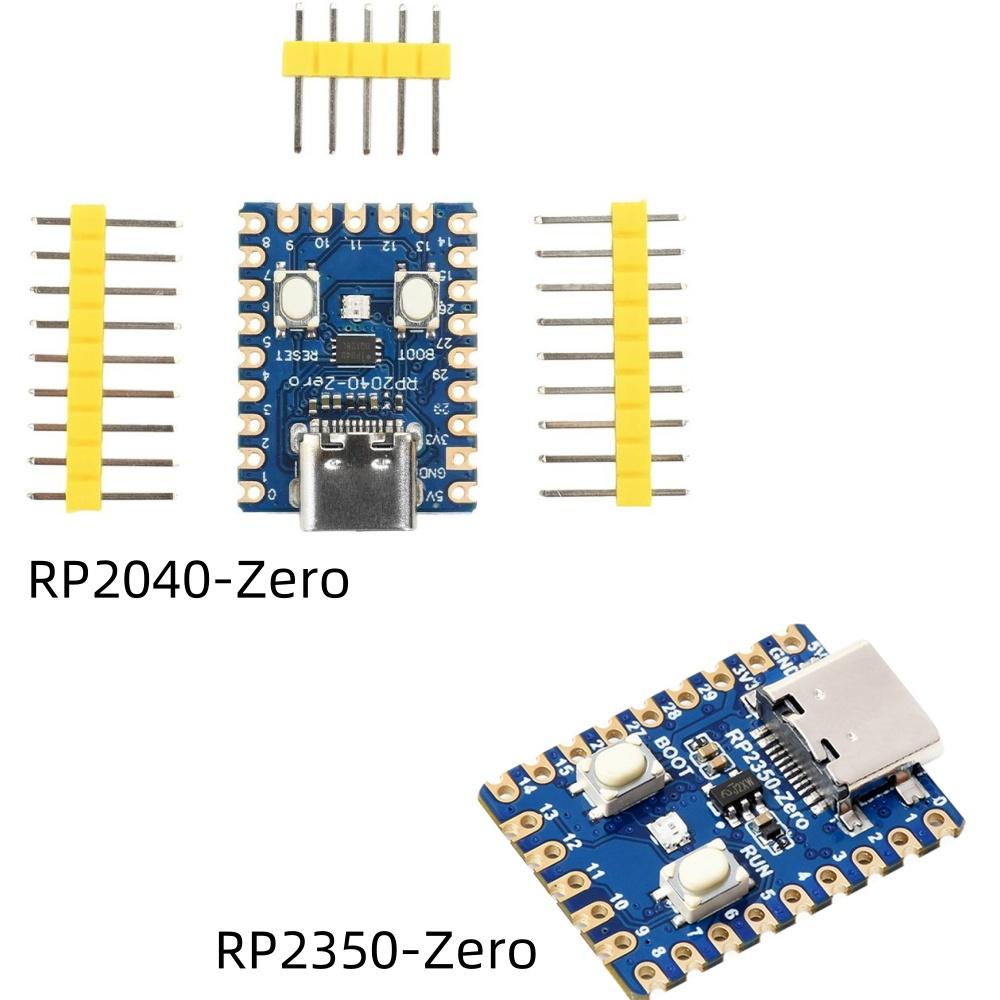

Package Includes: 1*Raspberry Pi RP2040-Zero microcontroller PICO development board without pin header
