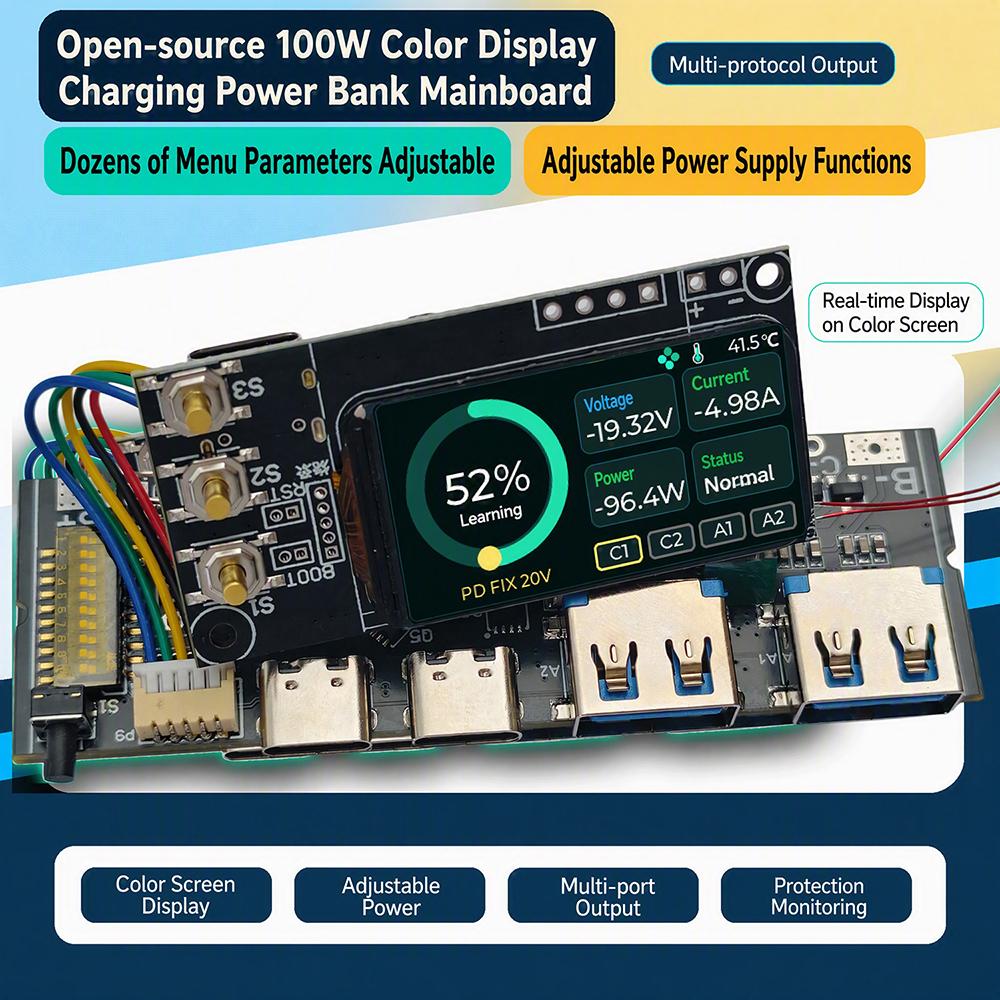

3~5S Power Bank DIY Mainboard PD 100W Bidirectional Fast Charging Module 1.47In TFT Color Screen For Charger Electronic DIY Kit

PCBincluded : No Voltage range : No voltage Reusability : Reusable Electronic : no Charger included : N Battery Included : no High-concerned chemical : none Accessory Type : Battery Accessories Brand Name : occkic Origin : Mainland China

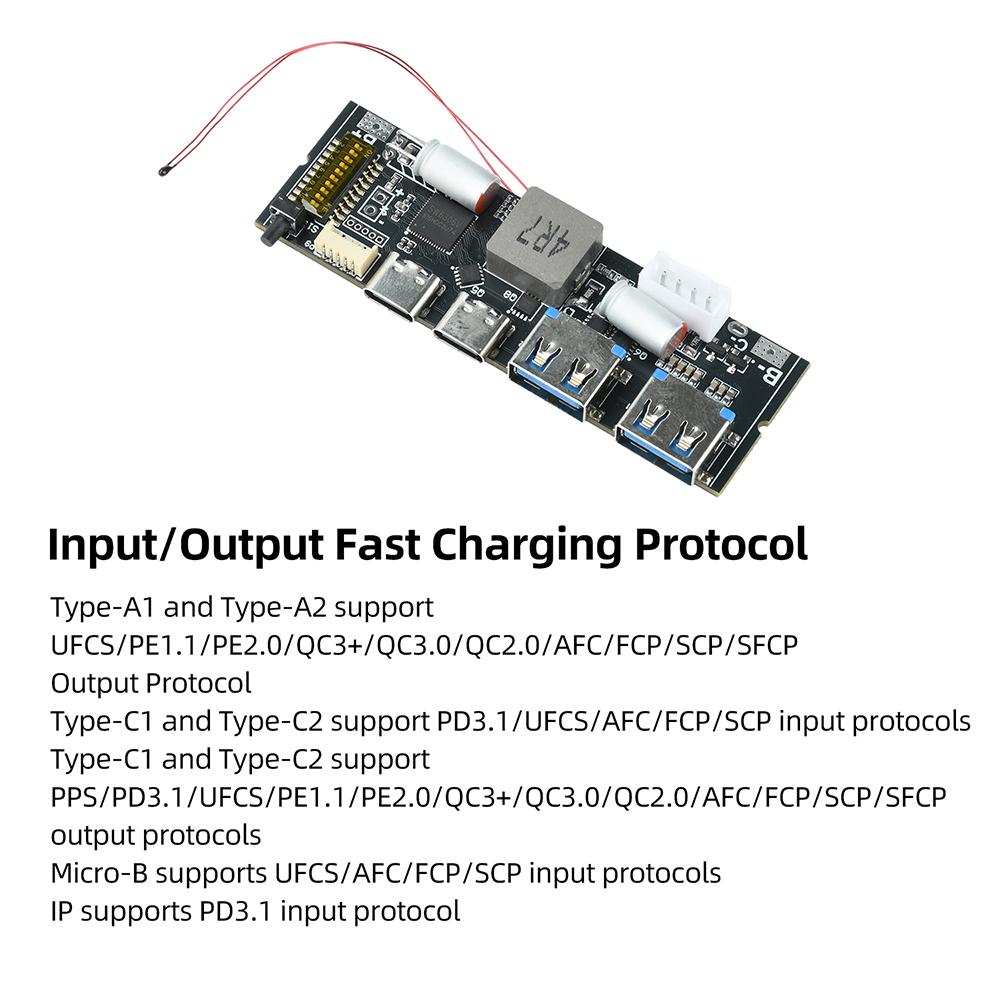

Features 1. Supports full 100W power for both input and output, compatible with 3-5S lithium-ion batteries and voltages ranging from 3.6V to 4.5V, offering broad applicability. 2. Built-in MPPT (Maximum Power Point Tracking) functionality allows connection to solar panels for efficient utilization of solar energy. 3. Utilizes automatic step-up/step-down technology with intelligent switching between PWM and PSM modes to balance efficiency and power consumption. 4. Integrates a full suite of protection mechanisms—including overcurrent, overvoltage, short circuit, over-temperature, and under-temperature protection—to ensure safe operation of both the device and the battery. 5. Offers nearly 30 adjustable menu parameters to meet the needs of advanced enthusiasts and professional users for fine-tuned settings. 6. No need for a voltage simulator; directly outputs adjustable voltages from 3.3 to 21V. USB port output voltage, current, and power can be configured, making it a versatile all-in-one solution. Input/Output Fast Charging Protocols Type-A1 and Type-A2 support UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP Output Protocols Type-C1 and Type-C2 support PD3.1/UFCS/AFC/FCP/SCP input protocols Type-C1 and Type-C2 support PPS/PD 3.1/UFCS/PE 1.1/PE 2.0/QC 3+/QC 3.0/QC 2.0/AFC/FCP/SCP/SFCP output protocols; Micro-B supports UFCS/AFC/FCP/SCP input protocols IP supports PD 3.1 input protocol Voltage, Current, and Power PPS/PD 3.1: 20V @ 5A, 3.3V–21V @ 5A, Max In 100W / Max Out 60W UFCS: 3.4–21V @ 5A, Max In 100W / Max Out 60W QC 2.0: 5V 3A / 9V 3A / 12V 2.8A / 20V 1.5A QC 3.0: 3.6V–20V @ 200mV/step! 5V @ 3A / 9V @ 3A/12V@2.8A/20V @ 1.5A QC3+: 3.6V–20V @ 20mV/step! 5V @ 3A / 9V @ 3A/12V@2.8A/20V @ 1.5A AFC: 5V 3A / 9V 3A / 12V 2.8AFCP: 5V 3A / 9V 3A / 12V 2.8A SCP: OUT 3.3V–12V, IN 5V/9V/10V/12V, supports 10V 4A PE1.1: 5V/7V/9V/12V PE2.0: 5V–12V @ 500mV/step SFCP: 5V/9V/12V VOOC: Supports VOOC 5V, 1.0 10V 5A, and 2.0 10V 6.5A The mainboard must be connected to the battery exactly as shown in the diagram. If the battery has its own protection board, simply connect the battery’s positive and negative terminals to the B+ and C- pads on the mainboard. Otherwise, if the mainboard has built-in protection, you must follow the diagram exactly and connect the balancing wire; failure to do so will prevent normal activation and use!!! Package include Power Bank Module *1 Balancing Wire *1

label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port
