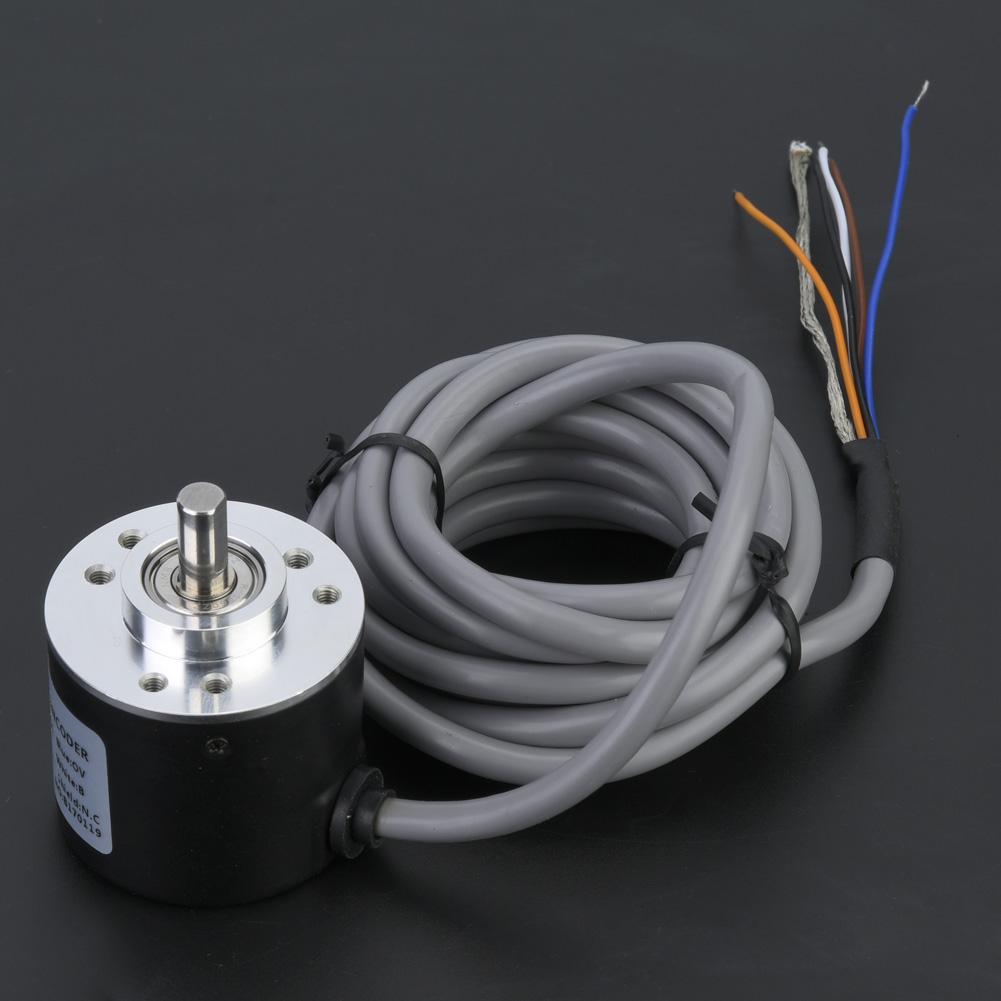

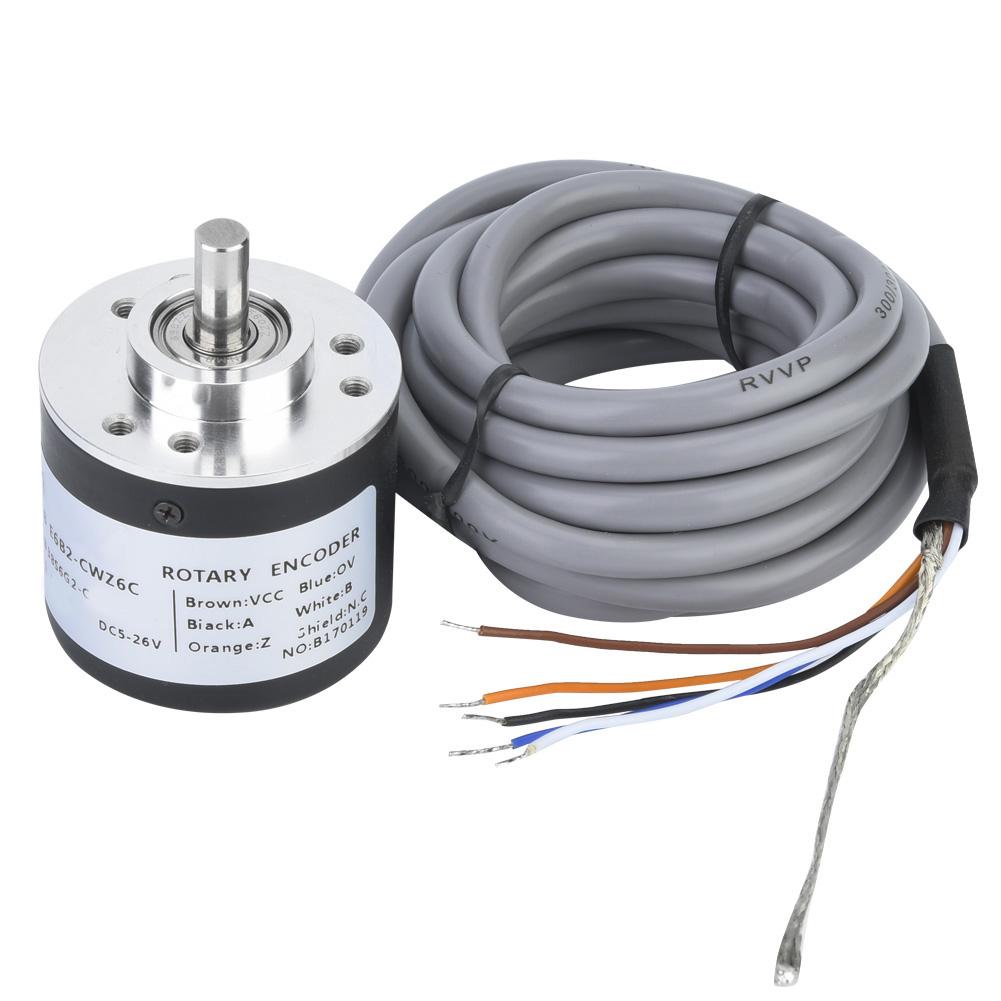

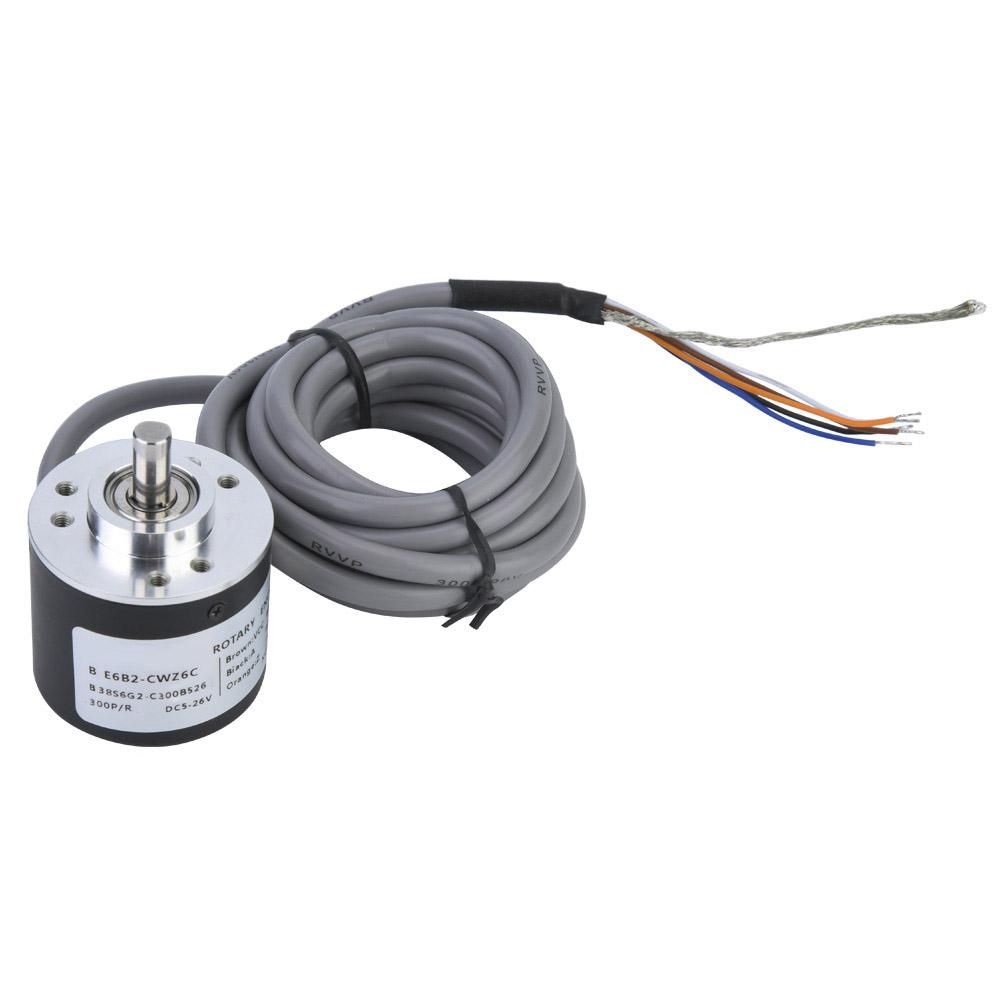

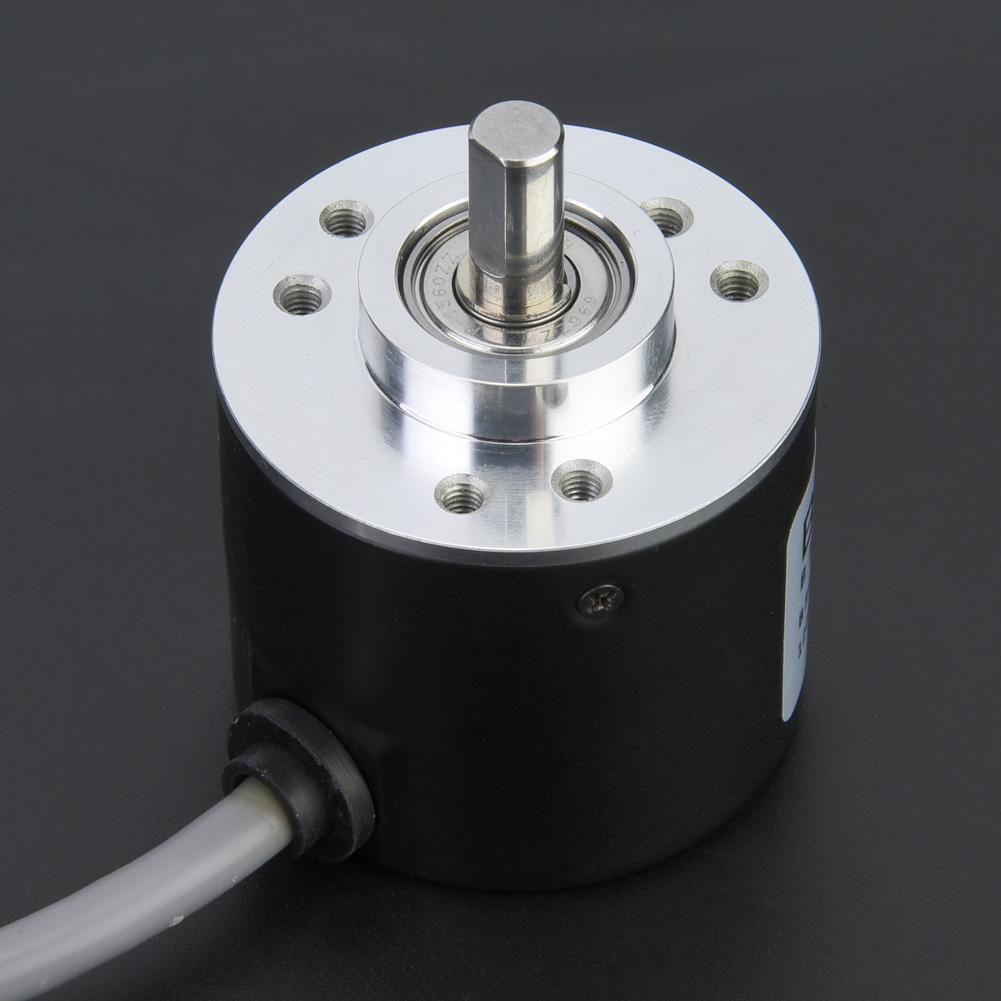

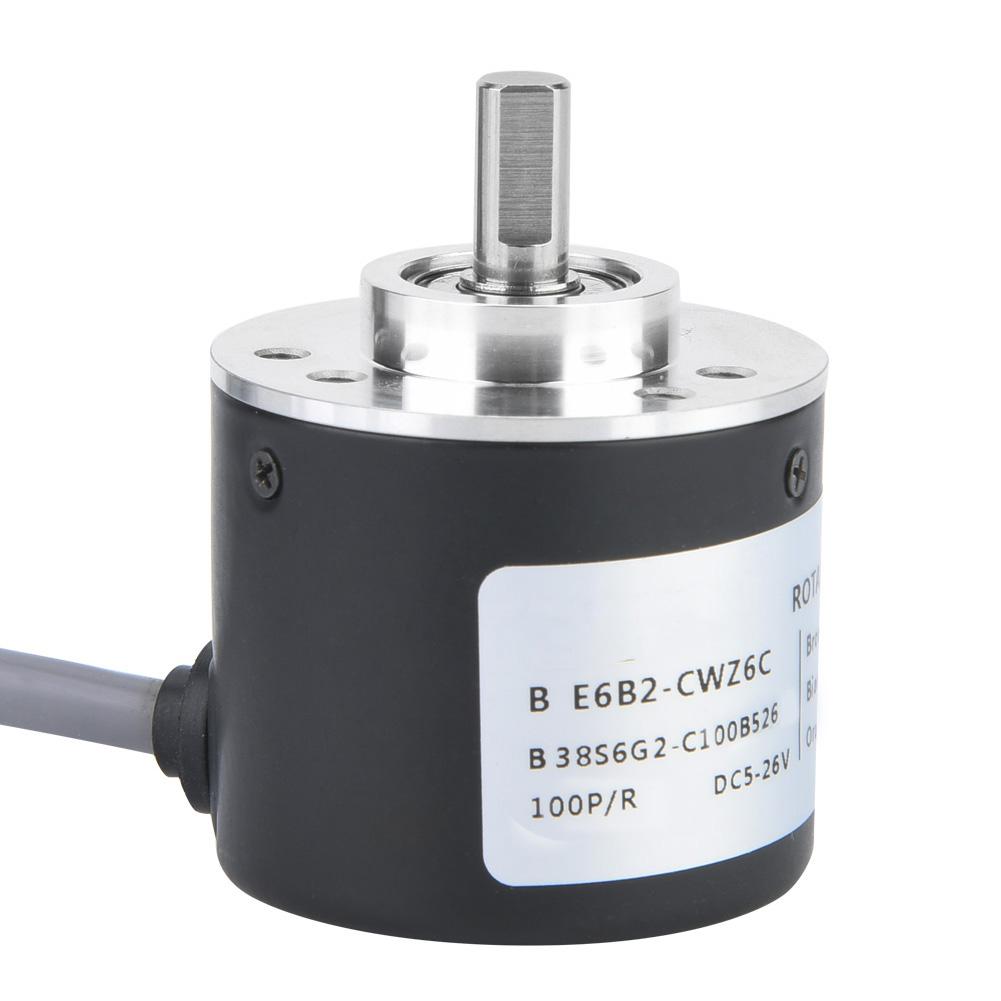

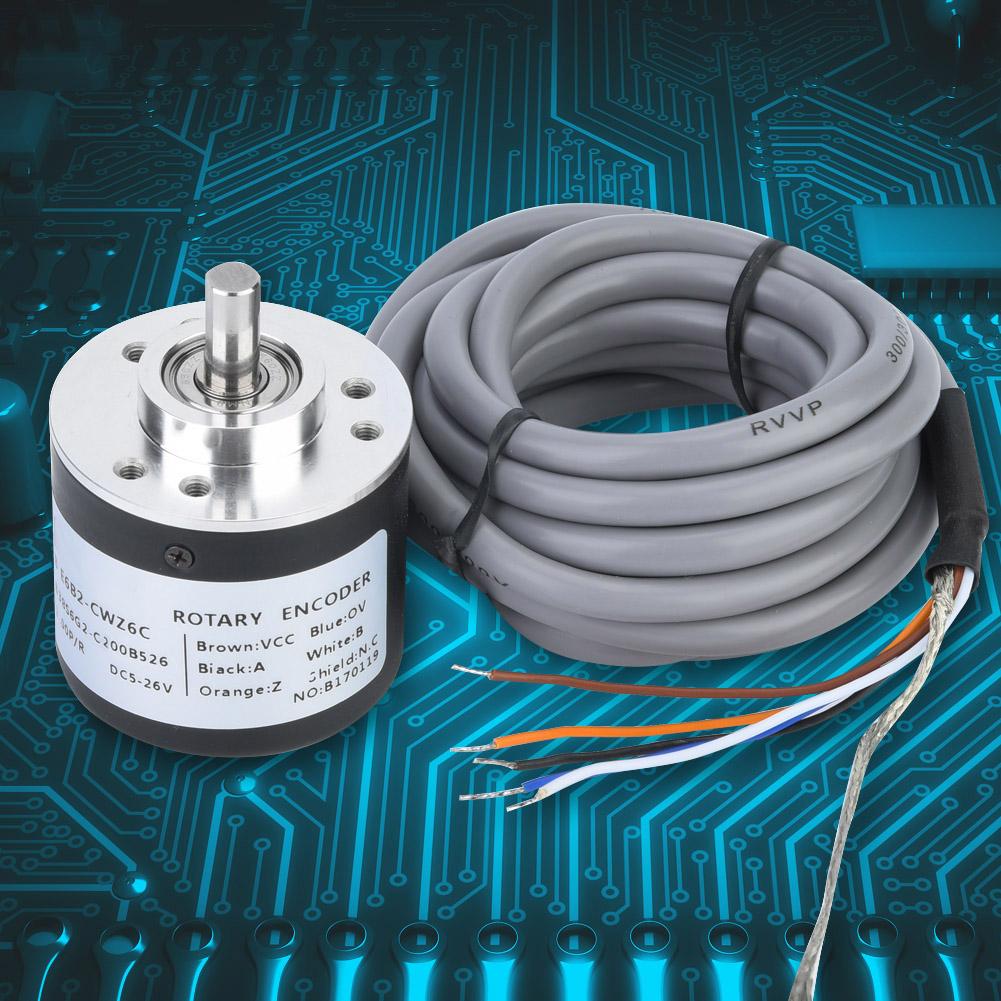

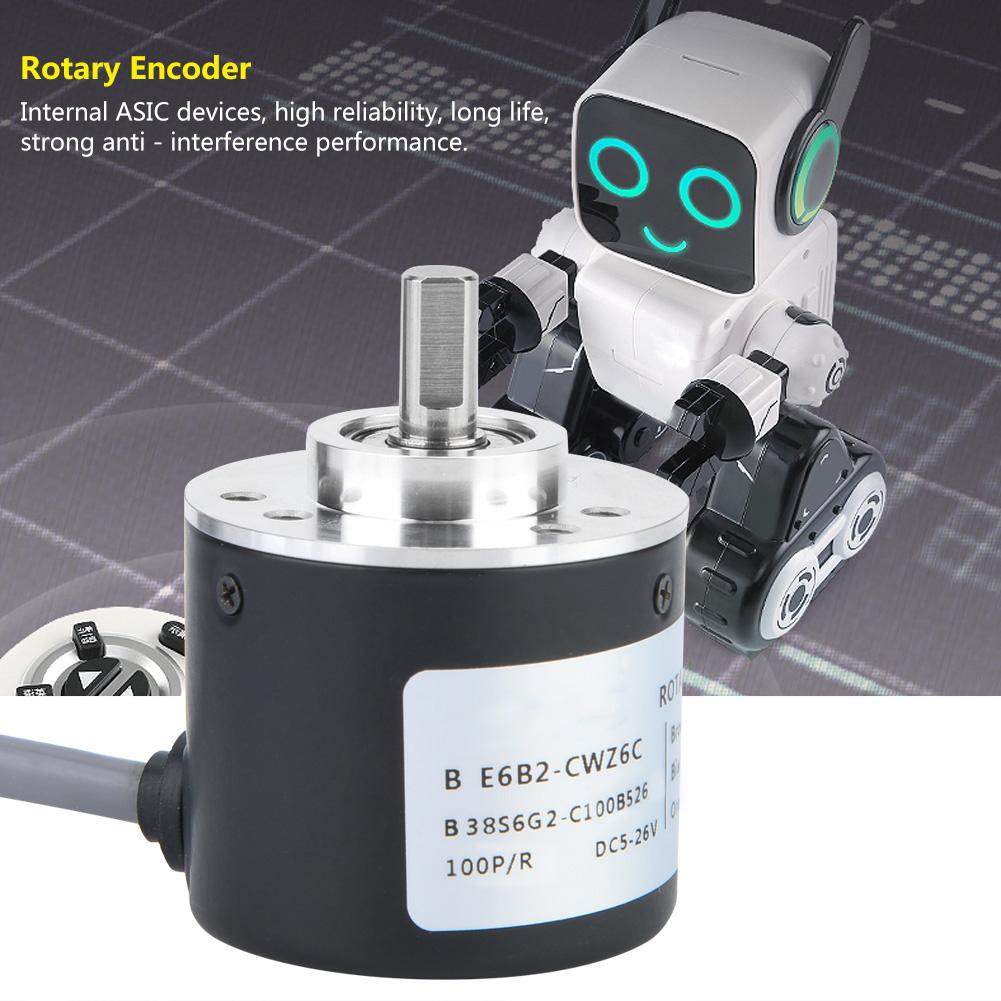

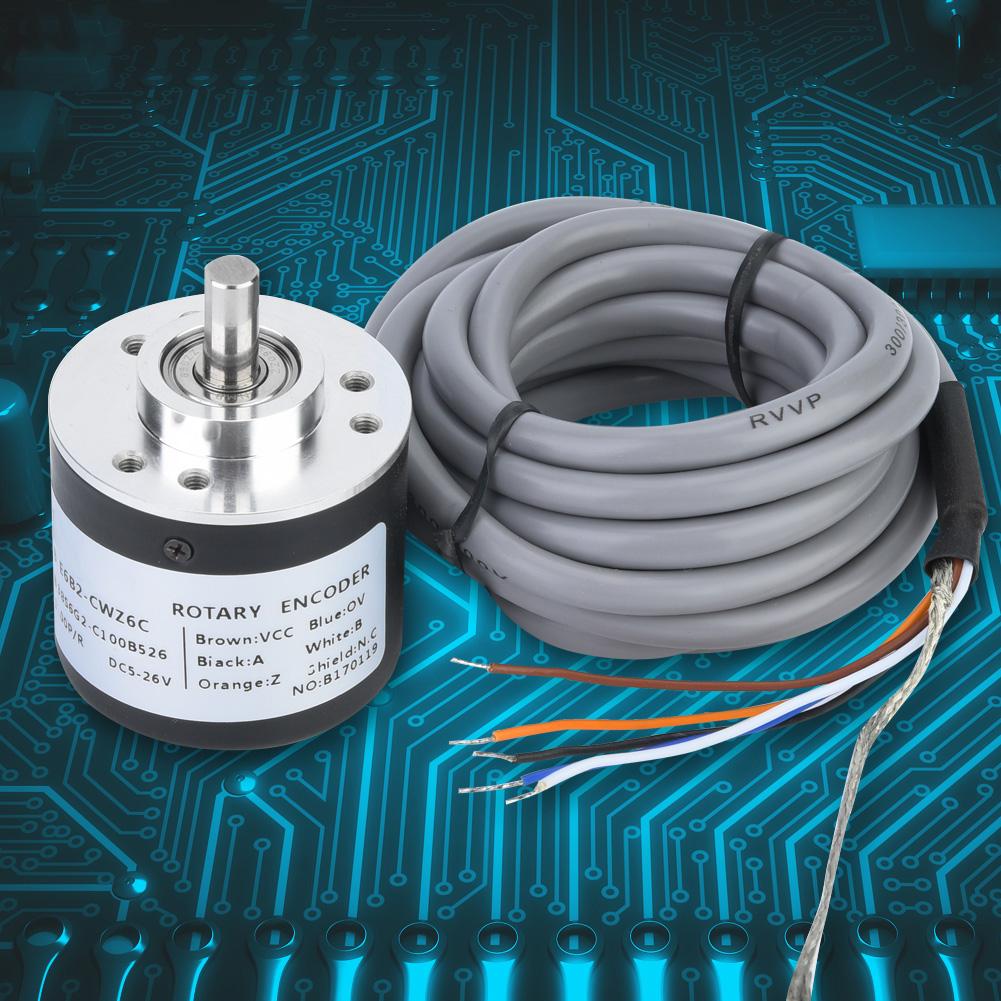

E6B2-CW 6C Incremental Encoder GeneraL purpose Encoder 38mm Diameter(100PCelsiusR)

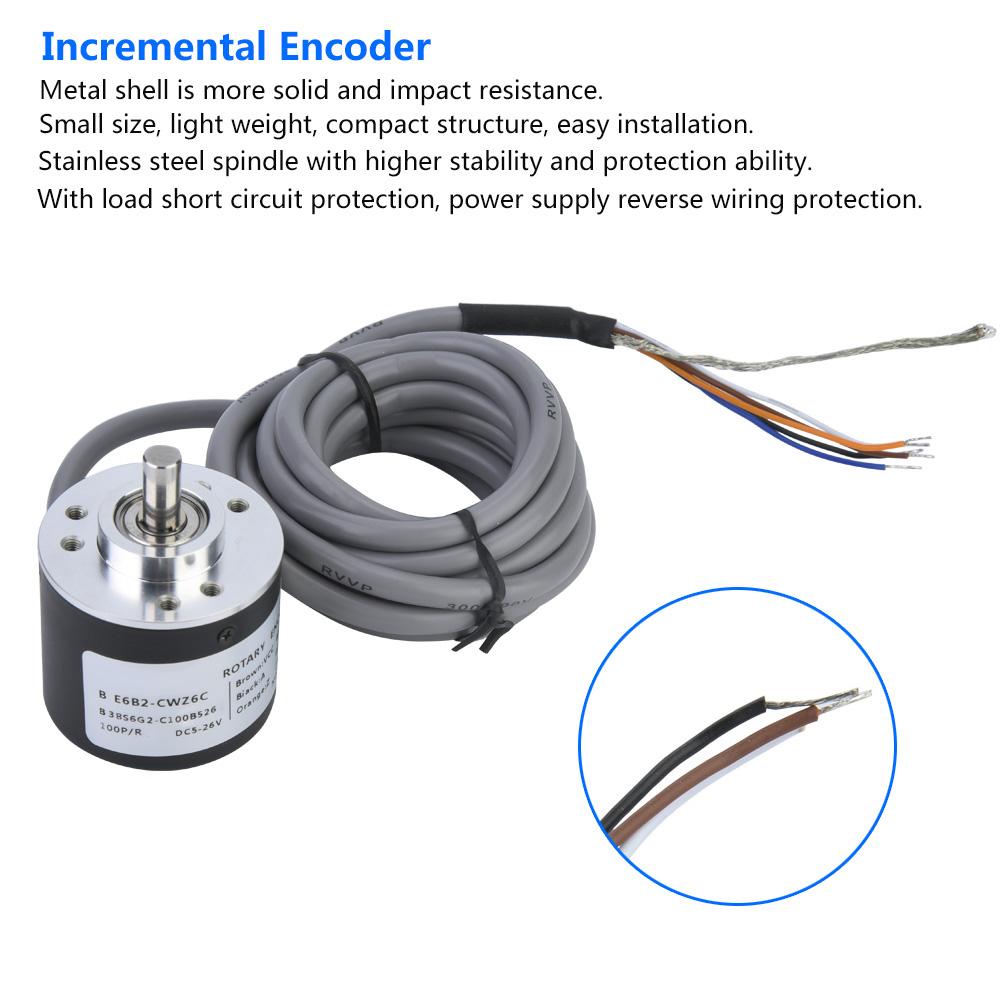

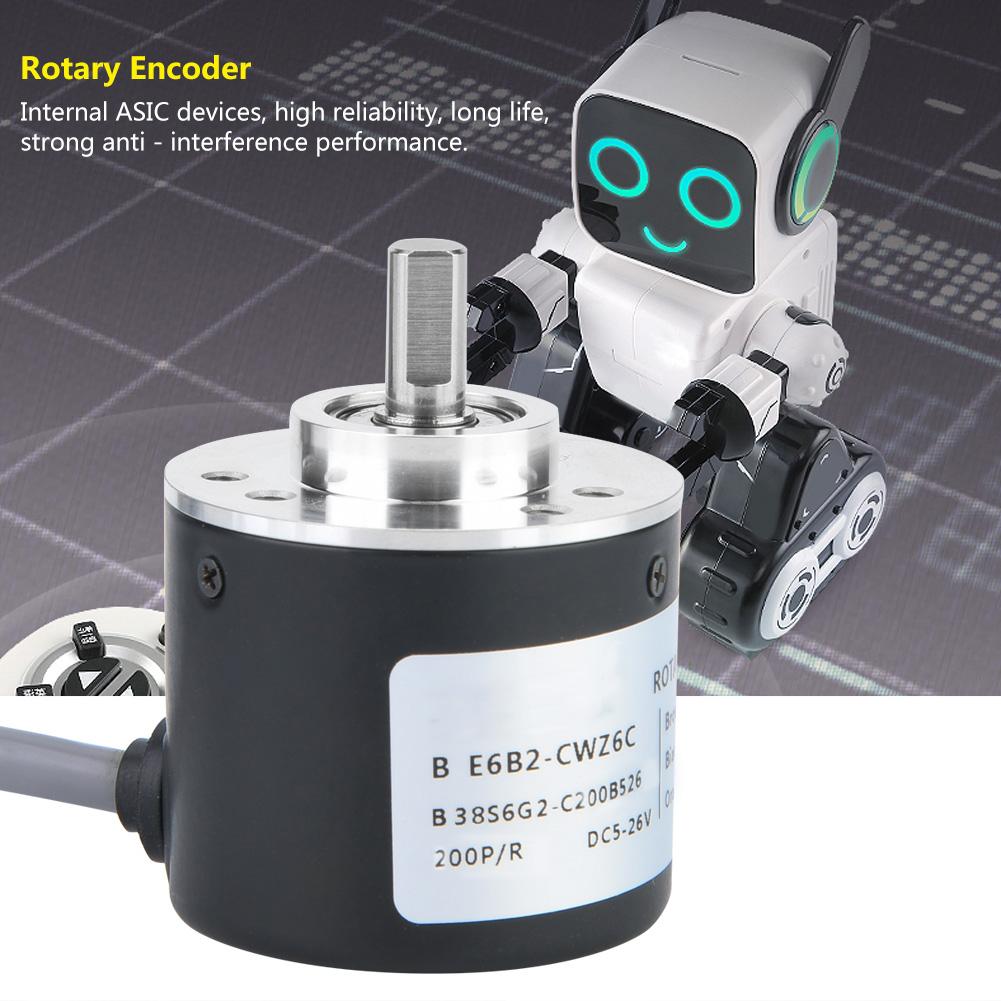

High quality incremental encoder with Diameter of 38mm. Internal ASIC devices, high reliability, life, strong anti - interference performance. Stainless steel spindle with higher stability and ability, metal is more and resistance. Features: High quality incremental encoder with Diameter of 38mm. Internal ASIC devices, high reliability, life, strong anti - interference performance. Stainless steel spindle with higher stability and ability, metal is more and resistance. Small si e, light weight, compact structure, easy installation. It uses corresponding power supply voltage 5 . 26V (open collector output type). It can reali e load, radial shaft loading 30N, thrust shaft loading 20N. With load short circuit , power supply reverse wiring . Specification: Item Name: Incremental encoder Model: E6B2-CW 6C Material: alloy ( ), aluminum (body) Input voltage: 5 . 26V(open-collector output type) Output mode: voltage output, collector output, complementary output, push pull output, line drive output, differential output, fork output Output phase: A, B, phase Outer diameter: 38 mm Thrust shaft diameter: 6mm Standard length of wiring wire: 2m Resolution (pulseCelsiusrotation) : 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600, 5000 (optional) Wiring : Brown line: 5-26V ( pole) Blue line: 0V (negative pole) Black line: A(phase) White line: B(phase) Orange line: (phase) Shielding cable: N.C (ground) Phase Difference Between Outputs: 90 degrees +Celsius-45 degrees between A and B (1Celsius4 T +Celsius- 1Celsius8 T) Output Configuration: NPN open-collector output Output Capacity:  applied voltage: 30 V .; synchronous current: 35 mA .; residual voltage: 0.4 V .(at synchronous current of 35 mA)

imum Response Frequency(*3): 100kH Rise and Fall Times of Output: 1 . (Control output voltage: 5 V, Load resistance: 1 k Ohm , Cable length: 2 m .) Starting Moment of Force: 0.9 mN.m . Moment of Inertia: 1 -6 kg.m² .; (3 -7 kg.m² . at 600 PCelsiusR .) Radial Shaft Loading: 30N Thrust Shaft Loading: 20N

imum Permissible Rotating Speed: 6,000rCelsiusmin

Circuits: load short circuit , power supply reverse wiring Ambient Temperature Range: operating: -10 to 70 celsius ; storage: -25 to 85 celsius (with no icing) OperatingCelsiusStorage Ambient Humidity Range: 35% to 85% (with no condensation) Insulation Resistance: 20 M Ohm min. (at 500 V ) between current-carrying parts and case Dielectric Strength: 500 VAC, 50Celsius60 H for 1 min between current-carrying parts and case Vibration Resistance(Destruction): 10 to 500 H , 2mm or 150 mCelsiuss²  double amplitude for 11 min 3 times each in X, Y, and directions Shock Resistance(Destruction): 1,000mCelsiuss² 3 times each in X, Y, and directions Package List: 1* Encoder 3* Screw 1* Instructions
