High Power RHCP Antenna SMA Inner Pin Hole Connector ABS Shell 360 Degree Full Coverage FPV Drone Aeromodel Accessory

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 5V Type : Terminal Block Operating Temperature : -40-85C Origin : Mainland China Condition : New Feature 1 : 3.3G 3100-3500MHZ Feature 2 : 4G 4000-6000MHZ Feature 3 : 5.8G 5100-5900MHZ Feature 4 : 6.7G 6700-7200MHZ Feature 5 : 5DBI 6DBI High Gain Feature 6 : Drone FPV Video Transmission Feature 7 : Quadcopter Antenna Feature 8 : Waterproof Heat Resistant Antenna Feature 9 : Drone Transmitter Feature 10 : Omnidirectional Antenna

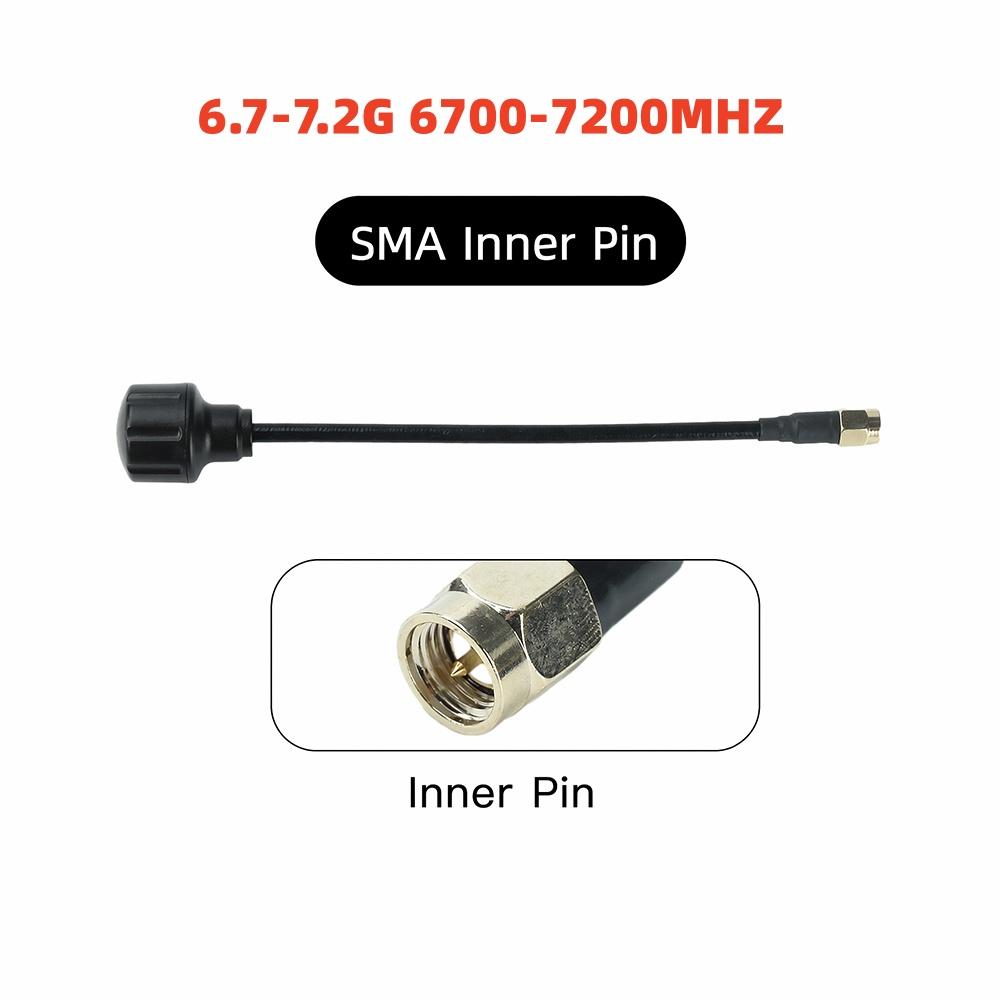

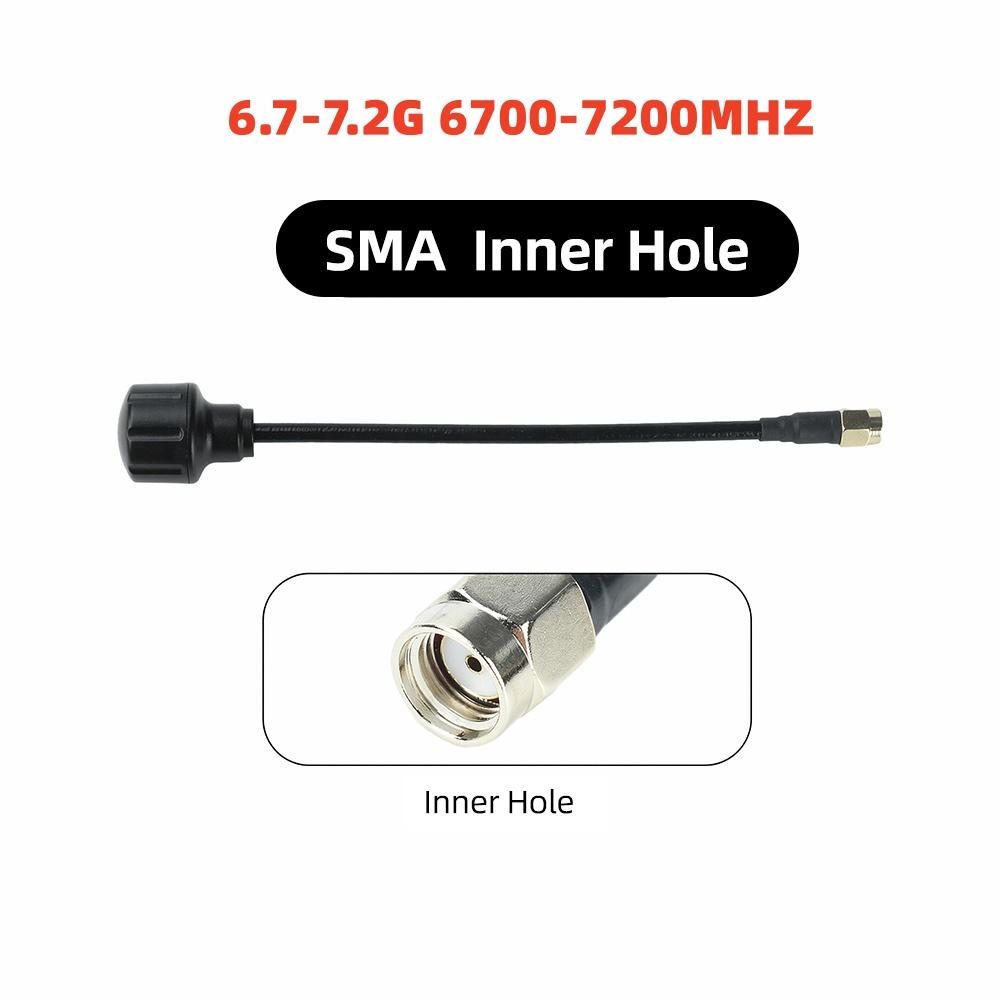

Type1/2:6700-7200MHZ Product Features: 1.6.7-7.2G dedicated frequency band, 6DBi high gain design, greatly extending the transmission distance of image transmission 2. Omnidirectional right-handed circularly polarized transceiver universal, regardless of transceiver interface, plug and play for various SMA devices 3.50 Ω standard impedance+low standing wave ratio of 1.5, low signal loss, more stable long-distance image transmission 4. ABS environmentally friendly shell is resistant to high and low temperatures, stable operation at -40 ℃~80 ℃, sturdy, durable and anti-interference 5. Compatible with various aerial remote operation equipment such as time traveling machines, aerial drones, model FPV image transmission, etc

Product Parameters: Product Name: 6.7G-7.2G Omnidirectional UAV Antenna Antenna gain: 6DBi Antenna frequency band: 6700-7200mhz Antenna specification: 156 * 21mm Antenna connector: SMA inner pin/SMA inner hole Antenna material: ABS Work direction: Omnidirectional transmission and reception Working temperature: -40 ℃± 80 ℃ Impedance: 50 Ω Standing wave ratio: 1.5 Polarization mode: right-handed circular polarization Scope of application: Universal for receiving and transmitting, suitable for unmanned aerial vehicles/drones/image transmission/aerial models, etc. High gain FPV image transmission antenna, compatible with a full range of omnidirectional devices, without distinguishing between receiving and transmitting ports, can greatly improve the stability and distance of device image transmission video.

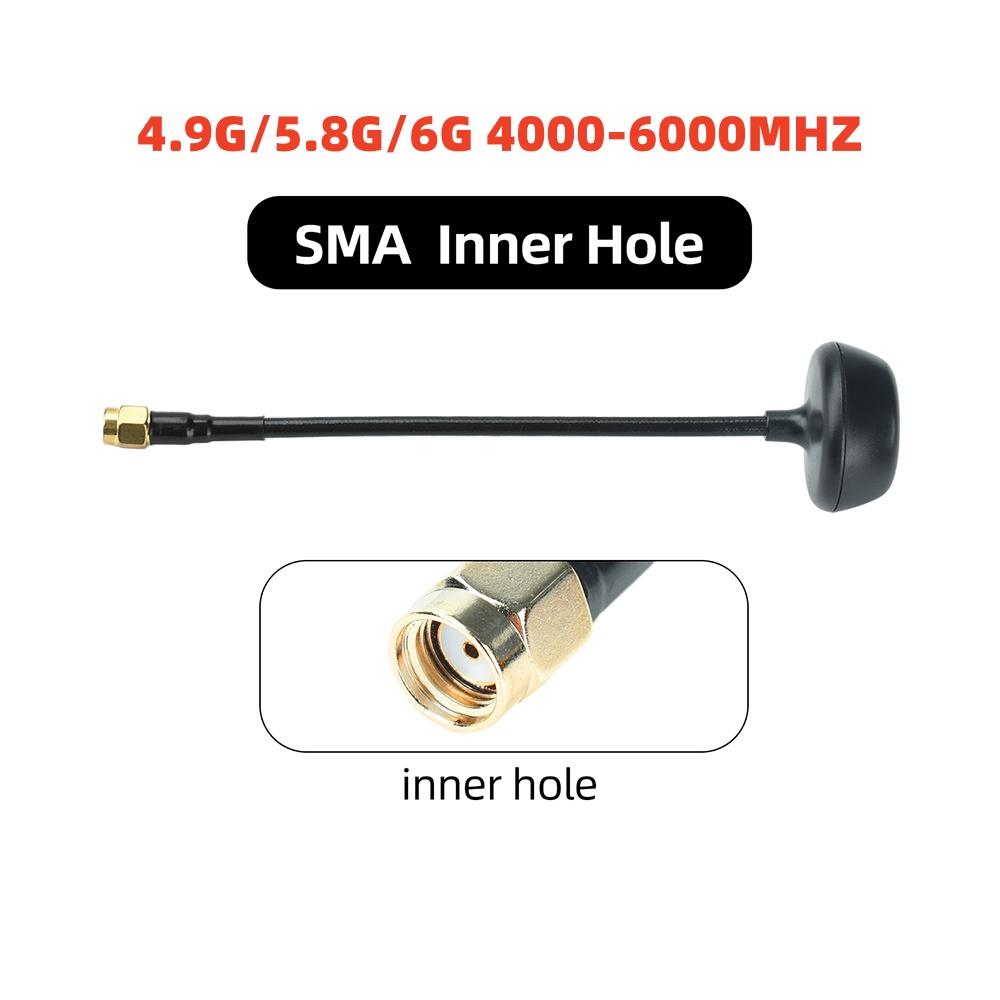

Type3/4:4000-6000MHZ Product Features: 1. High gain circular polarization design, stronger wireless signal, significantly expanded transmission coverage range 2.4000-6000MHz frequency band compatible, SMA connector optional, universal without distinguishing between transmitting and receiving ports 3. Omnidirectional 360 ° signal transmission and reception, with a standing wave ratio of ≤ 1.5, stable transmission, and longer flight distance in open environments 4. ABS wear-resistant and impact resistant shell, 50 Ω standard impedance adaptive equipment, 50W high-power stable output 5. Suitable for FPV aerial drones, with universal transmission and reception of model flight images, and dedicated for outdoor flight operations

Product Parameters: Product Name: FPV Image Transmission Antenna Antenna gain: 6DBI Antenna frequency band: 4000-6000MHz Antenna connector: SMA inner pin, SMA inner hole Antenna material: ABS Directionality: Omnidirectional transmission and reception Power: 50W Impedance: 50 Ω Standing wave ratio: ≤ 1.5 Polarization mode: circular polarization (RHCP right-handed) Scope of application: Suitable for unmanned aerial vehicle image transmission model aerial photography, universal for receiving and transmitting, 360 ° omnidirectional coverage can withstand high-intensity impact, universal for FPV crossing aircraft, etc.

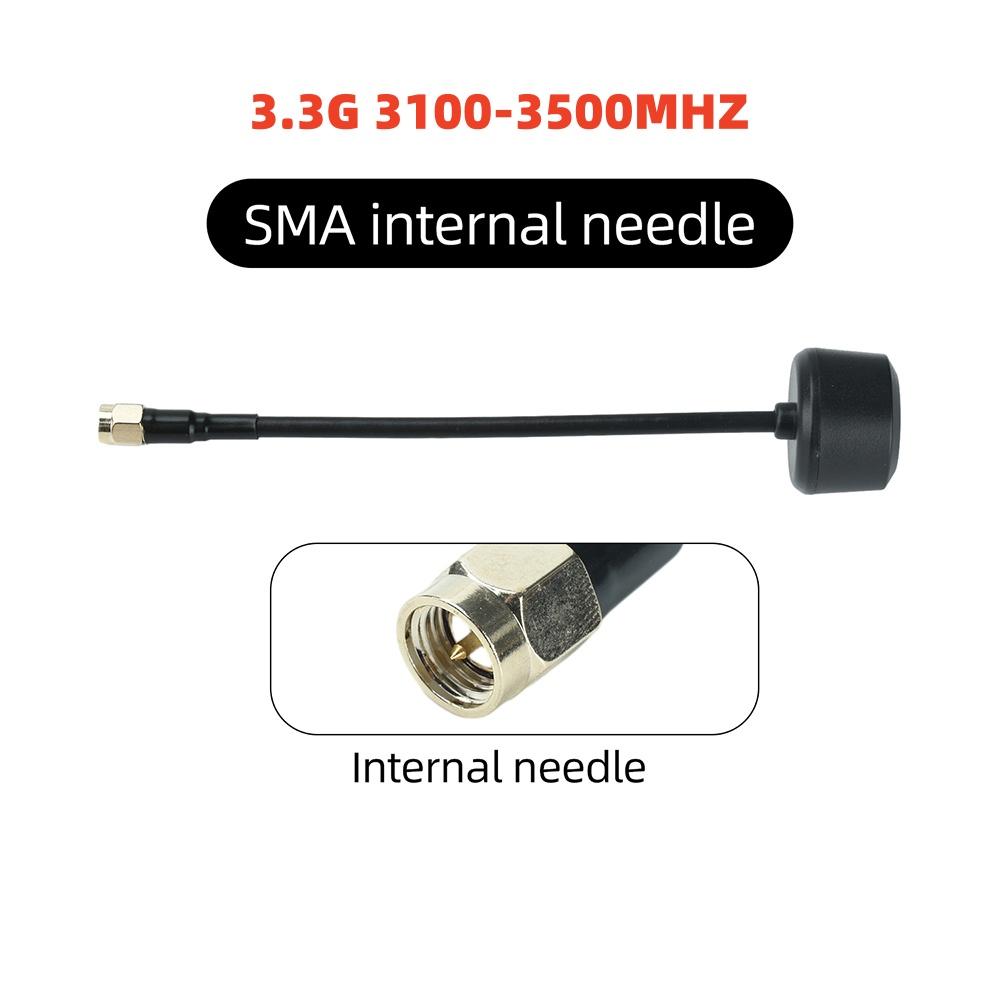

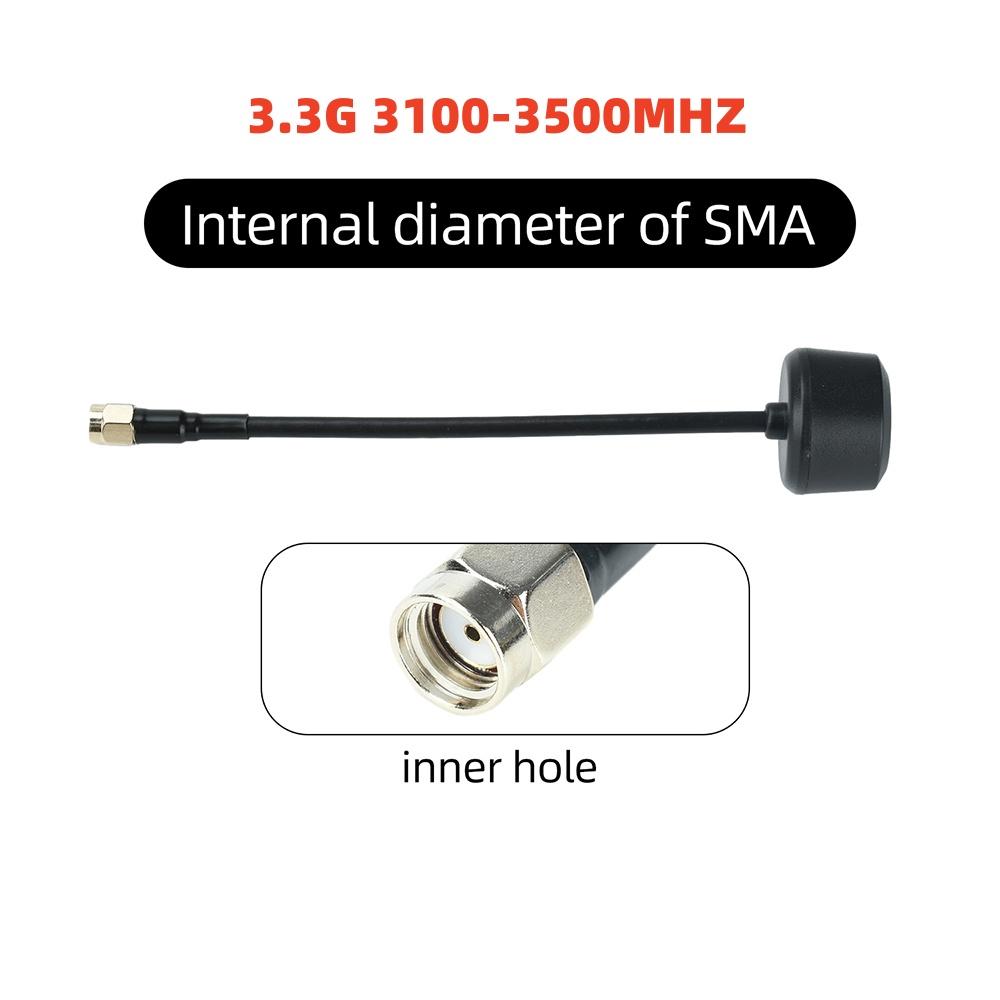

Type5/6:3100-3500MHZ Product Features: 1.6DBI high gain circular polarization design, stronger 3.3G frequency band signal, effectively improves flight transmission distance 2. Omnidirectional signal coverage, low standing wave ratio, stable transmission, and no blind spots for receiving signals 3. SMA dual connector universal transmission and reception, lightweight design, simple installation without increasing the burden on the body 4. Wide temperature, durable and impact resistant, stable operation from -40 ℃ to 85 ℃, not easily damaged during outdoor flight 5. Suitable for 3.3G model aircraft, FPV off-road vehicles, and unmanned aerial vehicles for long-distance image transmission

Product Parameters: Product Name: FPV Image Transmission Antenna Interface model: SMA inner needle/inner hole Radiation direction: Omnidirectional Polarization mode: Circular polarization RHCP right-handed Antenna gain: 6DBI Operating frequency: 3100-3500MHz Impedance: 50 Ω Standing wave ratio: ≤ 1.5 Working temperature: -40 ° C~+85 ° C Antenna size: 155mm * 28.5mm Functional features: 360 degree omnidirectional coverage, capable of withstanding high-intensity impacts, universal reception and transmission, lightweight, simple installation

Type7/8:5100-5900MHZ Product Features: 1. High gain omnidirectional design, 5100-5900MHz full frequency band adaptation, stronger and more stable long-distance image transmission signal 2. A universal antenna for transmitting and receiving, which can be used in conjunction with both the transmitter and receiver to meet usage needs 3. With a standing wave ratio of ≤ 1.5 and a standard impedance of 50 Ω, the signal loss is low 4. SMA internal screw and needle standard connector, lightweight without increasing flight load 5. Wide applicability, suitable for various FPV flight scenarios such as time traveling aircraft, aerial drones, etc

Product Parameters: Product Name: 5.8GFPV Image Transmission Antenna Frequency: 5100-5900MHz Gain: 5DBI Standing wave ratio: ≤ 1.5 Standard impedance: 50 Ω Connector: SMA inner screw and inner needle (connector can be d) Wire: RG402 Radiation mode: Omnidirectional Application: Drone/Traverse/Aerial Shooting/Receiving Product selling point: Universal for receiving and transmitting Suitable for aerial model/image transmission/FPV/drone/crossing machine/unmanned aerial vehicle. 360 ° omnidirectional coverage, capable of withstanding high-intensity impacts, lightweight, and simple installation. Product List: 1X antenna label:yes
