High-concerned chemical : none
Origin : Mainland China
Certification : NONE
Portable Spot Welder DIY Kit : Spot Welder PCB Circuit Board
Spot Welding Machine : Digital Spots Welder Control Board

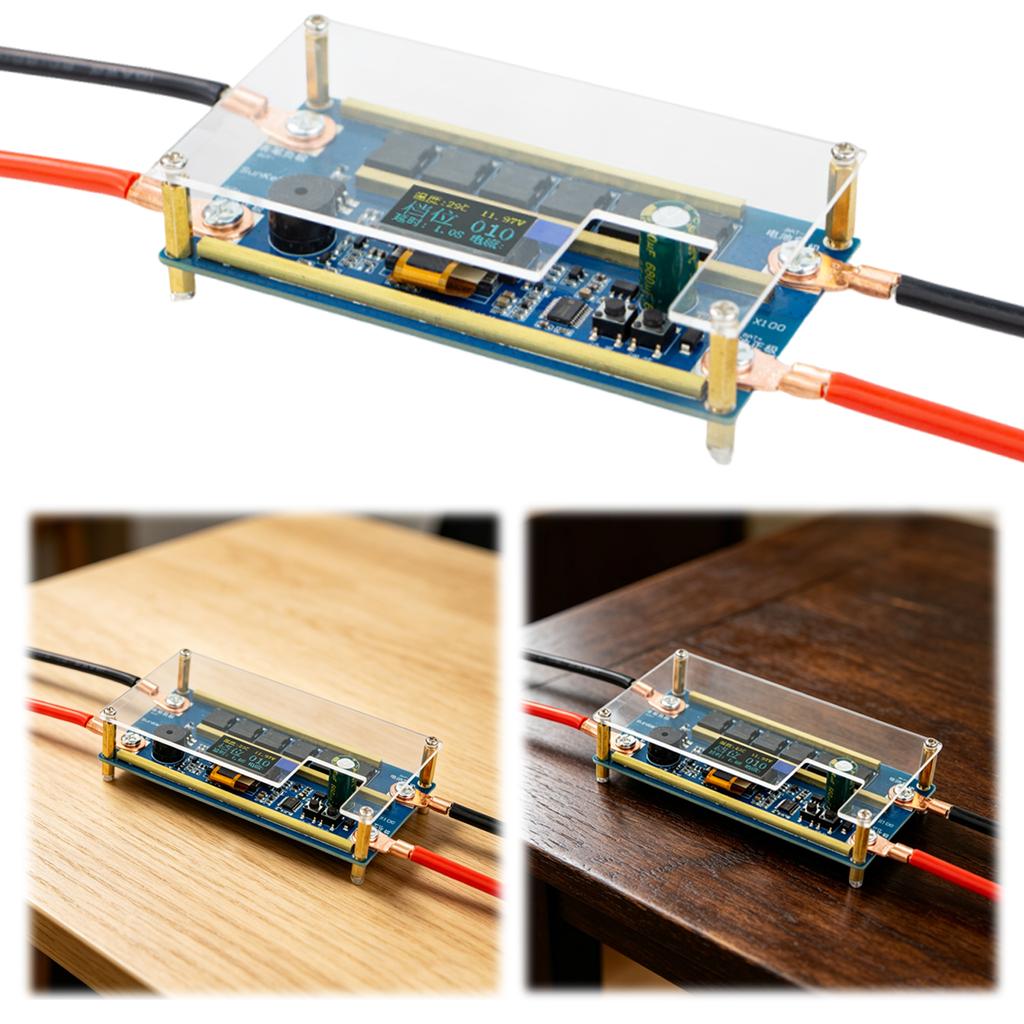

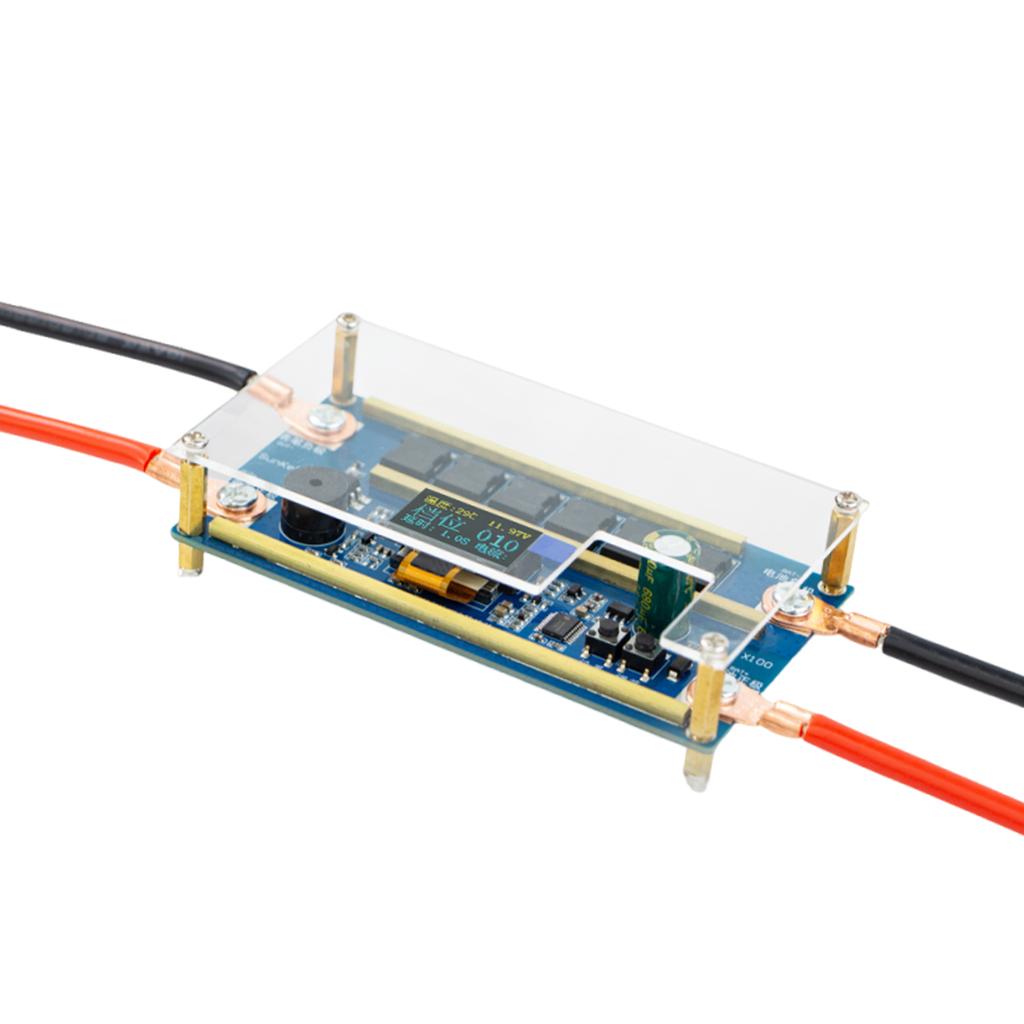

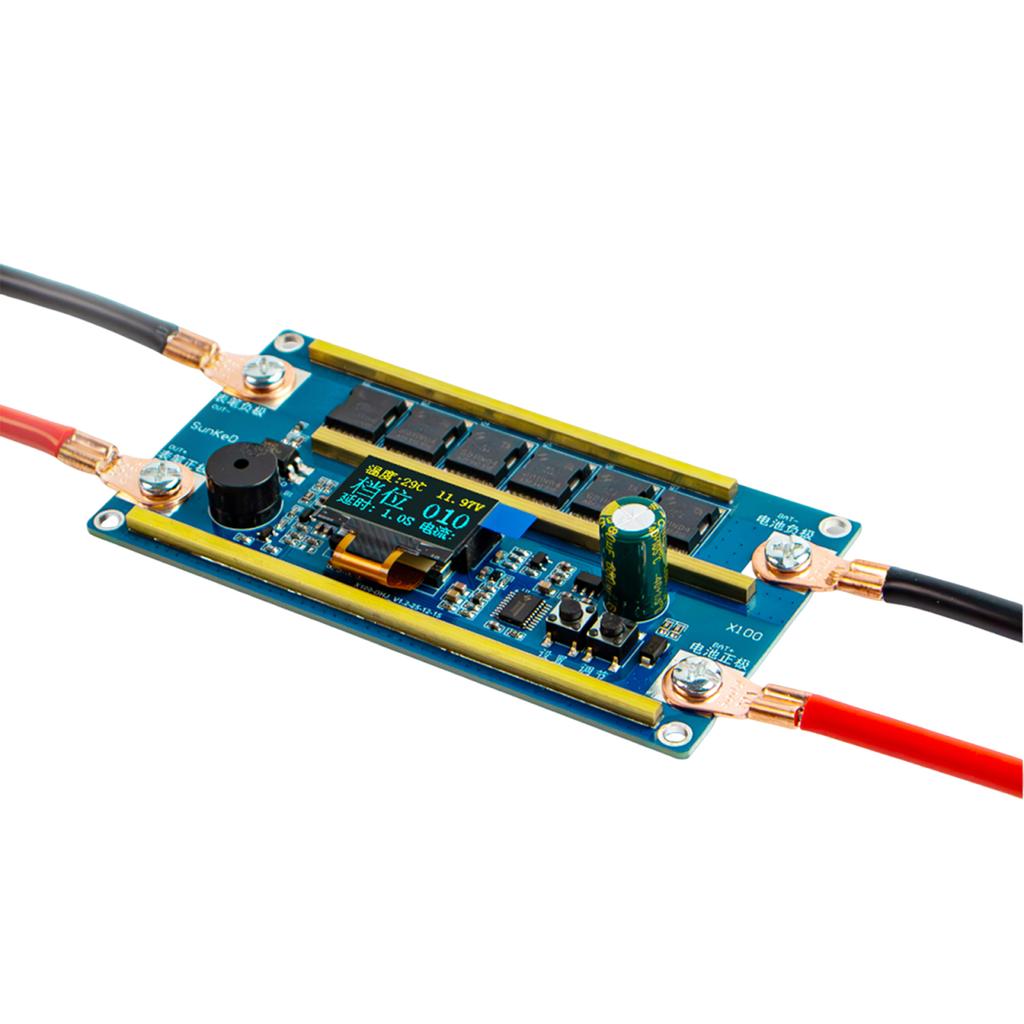

12V Spot Welder PCB Circuit Board 18650 Lithium Battery Digital Spots Welder Control Board 100-Step Power Adjustable Realtime Voltages Protective for Nickel Plate Welding
Features:
1. Comprehensive Parameter Display:The portable spot welder diy kit features a clear LCD screen showing 100 adjustable power levels, real-time position, voltage, current, and temperature, ensuring precise monitoring during .
2. Intelligent Voltage Monitoring Protection:Integrated spot welder pcb circuit board provides real-time voltage monitoring. If the welding current exceeds the set short-circuit value, the machine automatically terminates to safeguard your devices.
3. MOS Temperature Control System:The spot welding machine utilizes 6 MOS tubes with peak welding current up to 600A. Pure copper construction ensures excellent conductivity, optimal heat dissipation, and improved welding efficiency.
4. Enduring Materials for High Performance:Equipped with 10AWG wiring and aluminum-copper oxidized spot welding pins, this digital spots welder control board allows for high current flow and extended durability.
5. Multiple Adjustable Parameters:The mini spot welder supports dual language transfering, buzzer toggle, preheating pulse, high-temperature protection, and short-circuit safeguards for a d and secure experience.
Specification:
Origin: Mainland China
Operating Voltage: 12V
Operating Current: 20-45Ah
Standby Power Consumption: <0.5mA
Nickel Sheet Thickness: 0.1-0.3mm (related to battery capacity)
Peak Welding Current: 500A
Material: ABS+PC+Metal
Product Dimensions: Approx. 110*60*20mm / 4.33x2.36x0.79 (inch)
Operating Instructions:
1. The device will automatically enter sleep mode after 5 minutes of inactivity.
2. Sleep mode reduces power consumption when the device is not in use.
3. If the device will not be used for an extended period, please disconnect the power to prevent battery overcharging and damage.
4. If spot welding fails, it may be due to insufficient battery discharge. For new devices, please select a model with a higher current rating to extend the input time.
5. The speed setting can be increased by 0-5-10 increments. Do not exceed the limit. For example, 0-30 may easily burn out the circuit board. Please operate with care. Adjusting the speed setting is to adjust the welding time, not the current.
6. During spot welding, keep the nickel strip and battery surface flat, ensuring they are tightly fitted without spaces. During spot welding, the test probe should be slightly tilted; do not apply force. A gentle touch is sufficient. Excessive force will result in a weak weld.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
12V Spot Welder PCB Circuit Board 18650 Lithium Battery Digital Spots Welder Control Board 100-Step Power Adjustable Realtime Voltages Protective for Nickel Plate Welding
Features:
1. Comprehensive Parameter Display:The portable spot welder diy kit features a clear LCD screen showing 100 adjustable power levels, real-time position, voltage, current, and temperature, ensuring precise monitoring during .
2. Intelligent Voltage Monitoring Protection:Integrated spot welder pcb circuit board provides real-time voltage monitoring. If the welding current exceeds the set short-circuit value, the machine automatically terminates to safeguard your devices.
3. MOS Temperature Control System:The spot welding machine utilizes 6 MOS tubes with peak welding current up to 600A. Pure copper construction ensures excellent conductivity, optimal heat dissipation, and improved welding efficiency.
4. Enduring Materials for High Performance:Equipped with 10AWG wiring and aluminum-copper oxidized spot welding pins, this digital spots welder control board allows for high current flow and extended durability.
5. Multiple Adjustable Parameters:The mini spot welder supports dual language transfering, buzzer toggle, preheating pulse, high-temperature protection, and short-circuit safeguards for a d and secure experience.
Specification:
Origin: Mainland China
Operating Voltage: 12V
Operating Current: 20-45Ah
Standby Power Consumption: <0.5mA
Nickel Sheet Thickness: 0.1-0.3mm (related to battery capacity)
Peak Welding Current: 500A
Material: ABS+PC+Metal
Product Dimensions: Approx. 110*60*20mm / 4.33x2.36x0.79 (inch)
Operating Instructions:
1. The device will automatically enter sleep mode after 5 minutes of inactivity.
2. Sleep mode reduces power consumption when the device is not in use.
3. If the device will not be used for an extended period, please disconnect the power to prevent battery overcharging and damage.
4. If spot welding fails, it may be due to insufficient battery discharge. For new devices, please select a model with a higher current rating to extend the input time.
5. The speed setting can be increased by 0-5-10 increments. Do not exceed the limit. For example, 0-30 may easily burn out the circuit board. Please operate with care. Adjusting the speed setting is to adjust the welding time, not the current.
6. During spot welding, keep the nickel strip and battery surface flat, ensuring they are tightly fitted without spaces. During spot welding, the test probe should be slightly tilted; do not apply force. A gentle touch is sufficient. Excessive force will result in a weak weld.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
12V Spot Welder PCB Circuit Board 18650 Lithium Battery Digital Spots Welder Control Board 100-Step Power Adjustable Realtime Voltages Protective for Nickel Plate Welding
Features:
1. Comprehensive Parameter Display:The portable spot welder diy kit features a clear LCD screen showing 100 adjustable power levels, real-time position, voltage, current, and temperature, ensuring precise monitoring during .
2. Intelligent Voltage Monitoring Protection:Integrated spot welder pcb circuit board provides real-time voltage monitoring. If the welding current exceeds the set short-circuit value, the machine automatically terminates to safeguard your devices.
3. MOS Temperature Control System:The spot welding machine utilizes 6 MOS tubes with peak welding current up to 600A. Pure copper construction ensures excellent conductivity, optimal heat dissipation, and improved welding efficiency.
4. Enduring Materials for High Performance:Equipped with 10AWG wiring and aluminum-copper oxidized spot welding pins, this digital spots welder control board allows for high current flow and extended durability.
5. Multiple Adjustable Parameters:The mini spot welder supports dual language transfering, buzzer toggle, preheating pulse, high-temperature protection, and short-circuit safeguards for a d and secure experience.
Specification:
Origin: Mainland China
Operating Voltage: 12V
Operating Current: 20-45Ah
Standby Power Consumption: <0.5mA
Nickel Sheet Thickness: 0.1-0.3mm (related to battery capacity)
Peak Welding Current: 500A
Material: ABS+PC+Metal
Product Dimensions: Approx. 110*60*20mm / 4.33x2.36x0.79 (inch)
Operating Instructions:
1. The device will automatically enter sleep mode after 5 minutes of inactivity.
2. Sleep mode reduces power consumption when the device is not in use.
3. If the device will not be used for an extended period, please disconnect the power to prevent battery overcharging and damage.
4. If spot welding fails, it may be due to insufficient battery discharge. For new devices, please select a model with a higher current rating to extend the input time.
5. The speed setting can be increased by 0-5-10 increments. Do not exceed the limit. For example, 0-30 may easily burn out the circuit board. Please operate with care. Adjusting the speed setting is to adjust the welding time, not the current.
6. During spot welding, keep the nickel strip and battery surface flat, ensuring they are tightly fitted without spaces. During spot welding, the test probe should be slightly tilted; do not apply force. A gentle touch is sufficient. Excessive force will result in a weak weld.
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
1 x Spot Welder
or
1 x Spot Welder
or
1 x Spot Welder
label:yes
