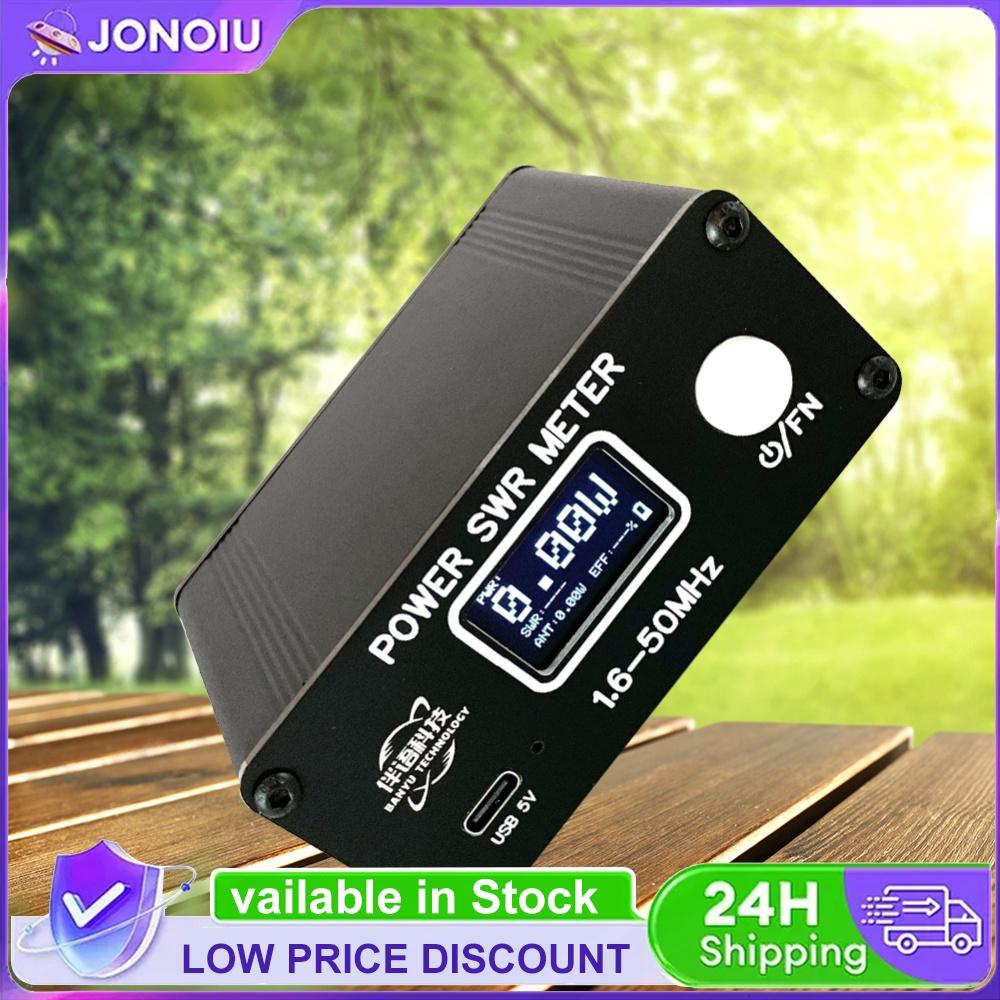

Mini Power SWR Meter HF Digital Display Short Wave Standing Wave Meter 0.5W-150W High Frequency SWR Meter Electrical Instruments

Semi-finishedproduct : No Battery Included : no High-concerned chemical : none Color : black Dimensions : 88mm*64mm*38mm Accuracy Class : 5% Model Number : Display Power Standing Wave Meter DIY Supplies : Electrical Origin : Mainland China Certification : NONE Power Standing Wave Meter : Power SWR Meter Short Wave Standing Wave Meter : High Frequency SWR Meter Standing Wave Ratio Meter : Shortwave Power Meter

Mini Power Standing Wave Meter 1.6-50MHz Digital Display Short Wave Standing Wave Meter 0.5W-150W Standing Wave Ratio Meter Accuracy Better Than 5% Electrical Instruments Feature:   1. Accurate and Efficient:The fitting algorithm of power standing wave meter  based on the characteristics of the detection diode, combined with dual-baseline segmentation detection, produces accurate results with an accuracy better than 5% over the entire power range from 0.5W to 150W. The high-speed averaging detection method allows for real-time efficiency display. 2. Multiple Display Options:With five different interface display options, users can select their preferred display option with a single click. This feature of power swr meter provides greater customization and personalization to the user experience. 3. Audible Alert:The short wave standing wave meter exceeding 2.0 triggers a beep alarm, alerting users to potential issues. 4. Compatibility with Open-Source Software:The GM328A supports G8GYW open-source software code, allowing for freedom in modifying the code and adding additional features. The USB firmware upgrade eliminates the need for a special burner, providing easy and convenient upgrades. 5. Long Battery for Life and Multi-Functional Keypad:The high frequency swr meter built-in provides more than 50 hours of use per charge. The multi-functional keypad provides an interactive way to add functionality and make the user experience even more fun. Specification: Certification: NONE Origin: Mainland China DIY Supplies: ELECTRICAL Model Number: Display Power Standing Wave Meter Color: Black Frequency range: 1.6-50MHz Power measurement range: 0.5W-150W Standing wave measurement range: 1.0-99.9 Insertion loss: <0.12dB Insert standing wave: 1.6-30MHz≤1.02; 30-50MHz≤1.05 Measurement accuracy: better than ±5% Impedance: 50Ω Standing wave alarm: ≥2.0 (with shutdown function) RF interface type: SL16-for M or N (default for M) Display content: forward power; standing wave; antenna end power; efficiency Power supply: built-in 3.7V/1000mAh rechargeable or USB type-c Shutdown power consumption: <0.1uA Screen size: 0.96 inches Screen type: OLED Data communication: USB type-c Firmware upgrade: support Machine size: 88mmx64mmx38mm/3.46x2.51x1.49inch (excluding the protruding part)

Special reminder: It is recommended not to exceed 110W for continuous transmission in FM or AM mode; SSB or CW can work under 200W power for a long time; exceeding 500W will damage the detection components

Instructions for use:  Long press to switch the machine, short press to switch the display interface, double click to switch the standing wave alarm; There are a total of 5 display interfaces, which are automatically saved and automatically recalled at the next startup. Charging red light display, fully charged light off

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

1 x Power Standing Wave Meter   label:yes
