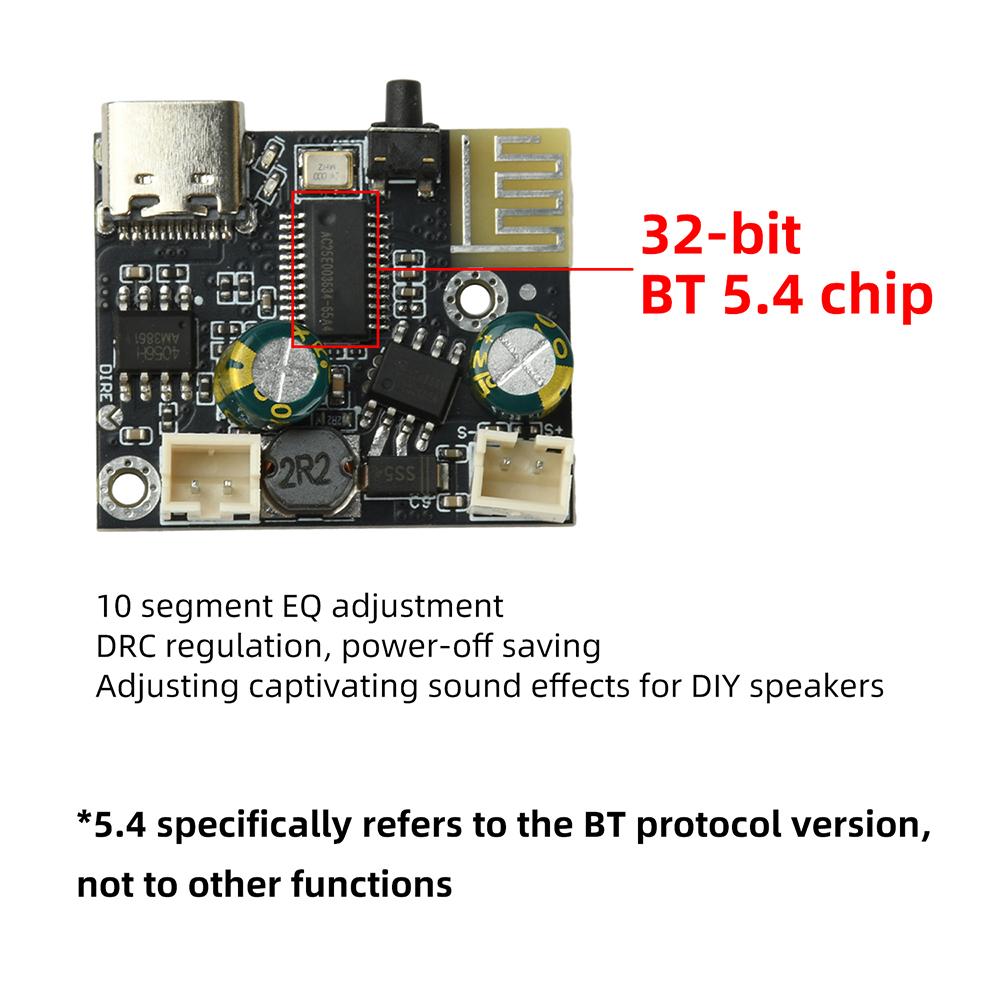

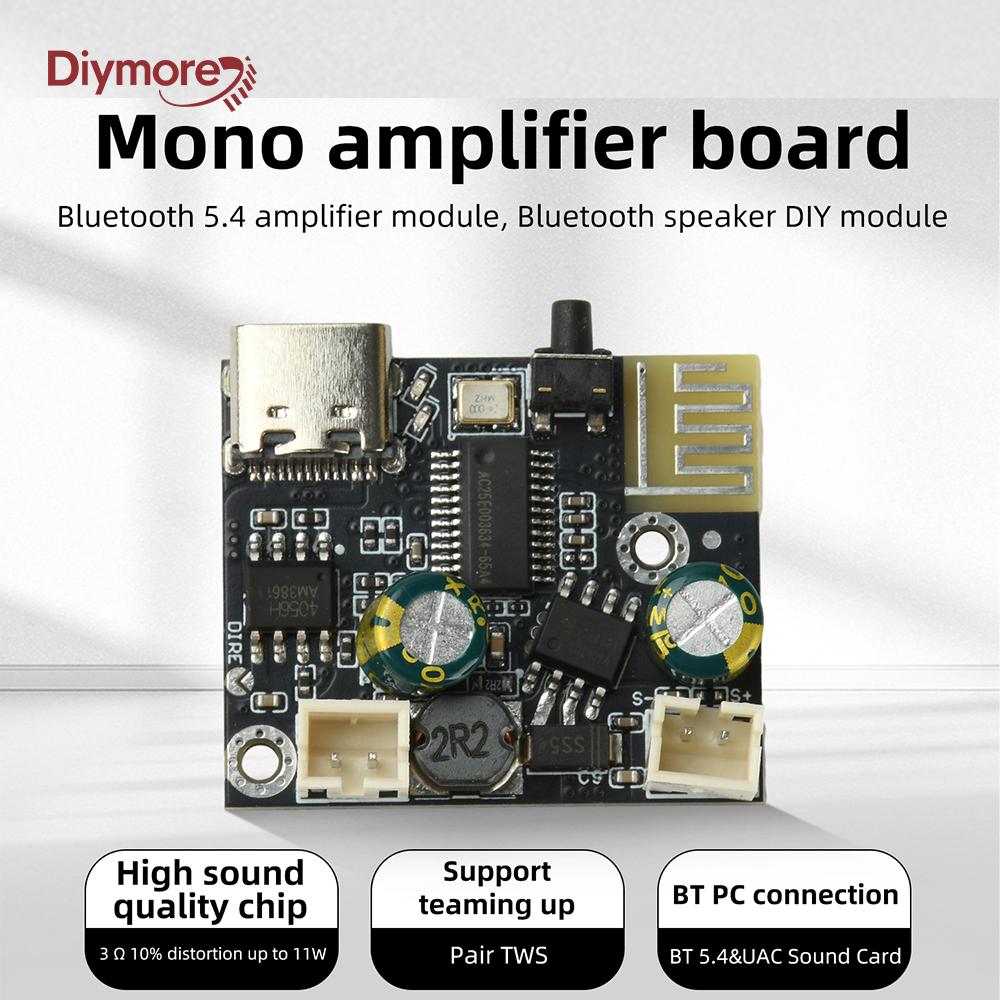

DC 3.7-5.0V Mono Amplifier Board BPM13 Plus BT 5.4 Amplifier Module BT Audio Speaker DIY Module Type C

Quantity : 1 High-concerned chemical : none is_d : Yes Type : Module Brand Name : diymore Origin : Mainland China Condition : New

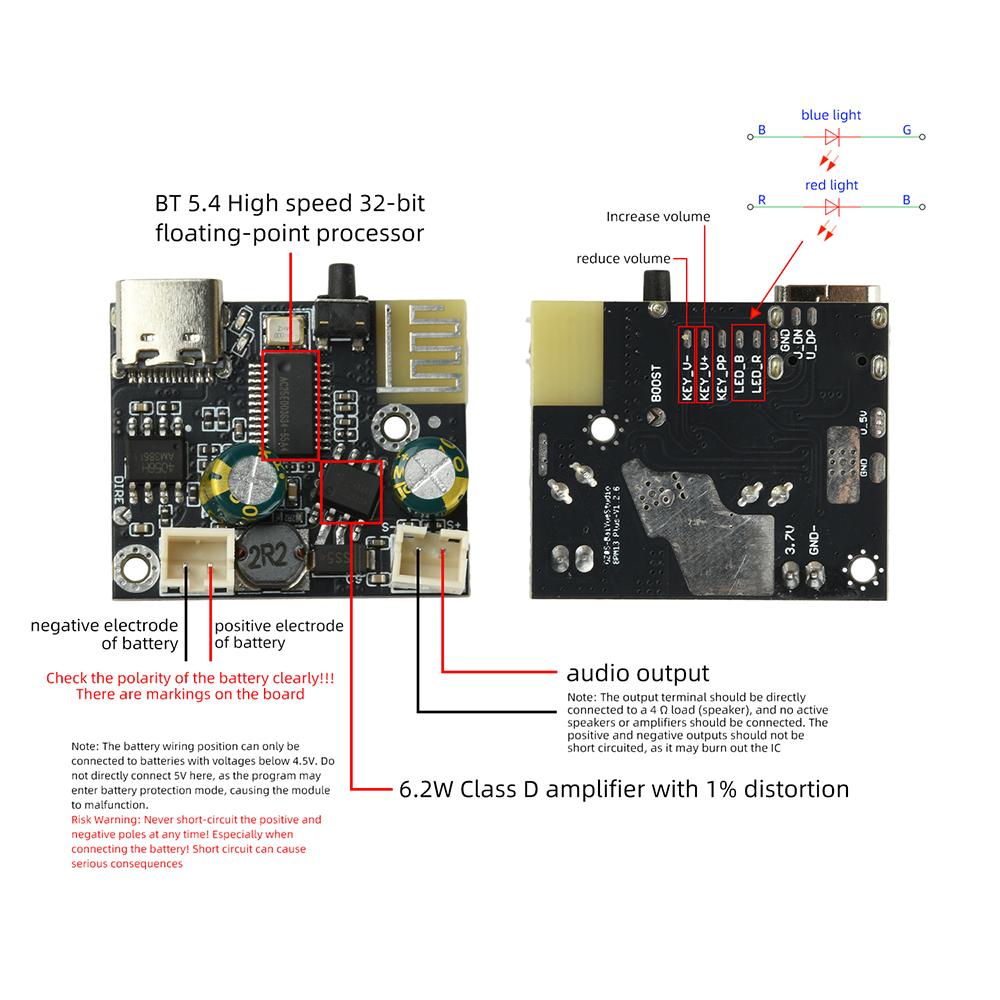

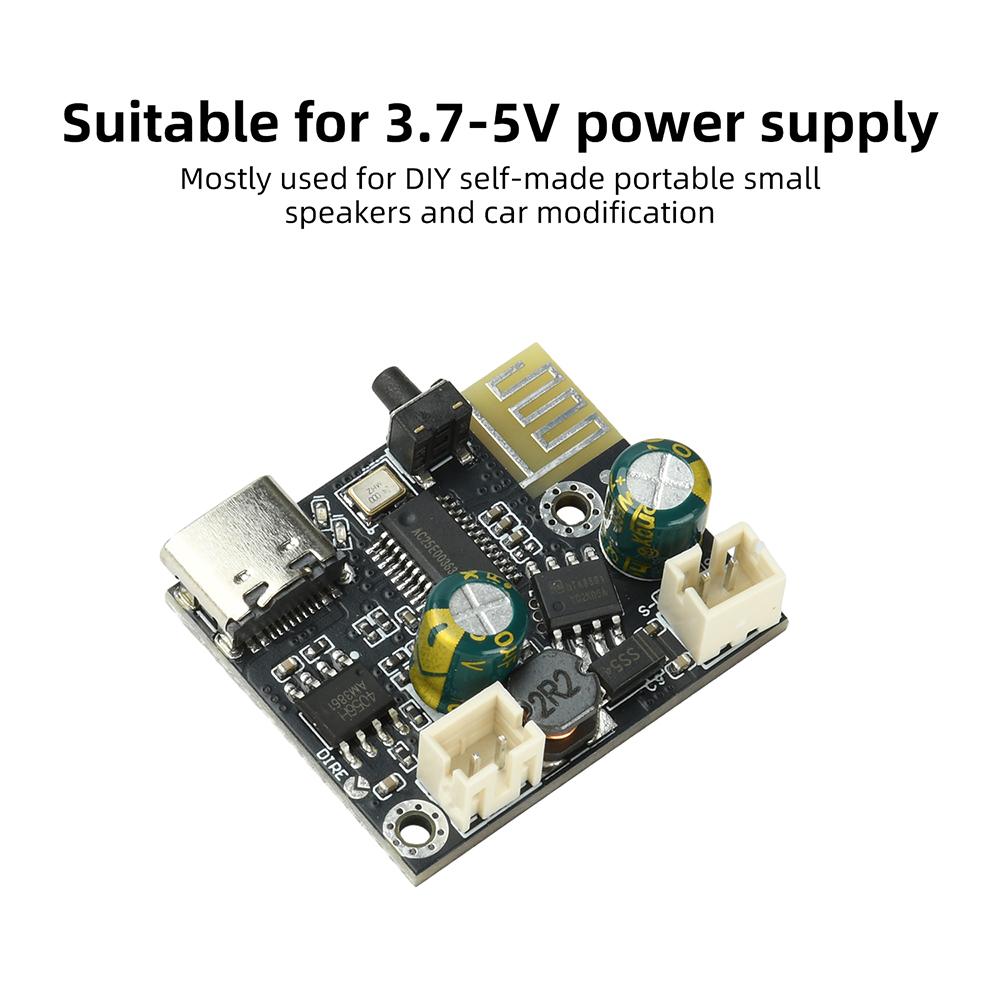

Features: 1. Equipped with BT 5.4 and USB dual inputs, the computer can adjust EQ and real-time sound effects when connected online. 2. Original D-class amplifier chip, with a tested 6.2W power under a 4 Ω load, and the power is not falsely labeled. 3. Select high-quality resistive capacitive components, optimize high and low frequencies, and restore delicate and high fidelity sound quality. 4. Intelligent noise reduction+fine volume control, volume step by 1%, excellent signal-to-noise ratio performance. 5. Suitable for 3.7-5V power supply, mostly used for DIY self-made portable small speakers and car modification. Performance Introduction: 1. Original power amplifier chip, with 1% TDH+N output at 4 Ω load and actual power of 6.2W without any false standard! 2. Two green gold high-frequency capacitors with better high-frequency performance and sufficient energy storage capacity. 3. Imported chip capacitors with sufficient capacity are used to ensure stable power supply and no leakage during shutdown of the chip. 4. Adopting a 1% thick sound resistor and imported coupling capacitor with higher precision to ensure sound quality. 5. The charging chip is equipped with reverse connection and surge protection, using high-quality charging control chips, with a charging current of up to 1000mA and high efficiency. 6. Equipped with the third-generation Acoustic TM intelligent noise reduction, manual switching can maintain high signal-to-noise ratio while maintaining amplifier output during startup, allowing for complete playback of both the beginning and end of the book. 7. Equipped with an infinite volume adjustment engine, the volume can be adjusted accurately to 1%, making the volume adjustment more precise. Product Parameters: Product Name: 5V BT Audio Amplifier Module Chip type: Mono gain BT version: BT 5.4 Input voltage: DC3.7-5.0V Power supply current: DC 2A (Max) Output power: 6.2W (4 Ω) Upto: 7.3W Amplifier type: Class D Output noise: 0.1mVrms (f=20Hz~20kHz, Av=25dB) Audio input: Bluetooth+USB Output channel: 1-channel mono Size: 25mm * 30mm (excluding interface) Please note: Ensure proper insulation on the back of the board! Do not connect the battery in reverse, as it may cause board burning! Product list: 1X power amplifier module
