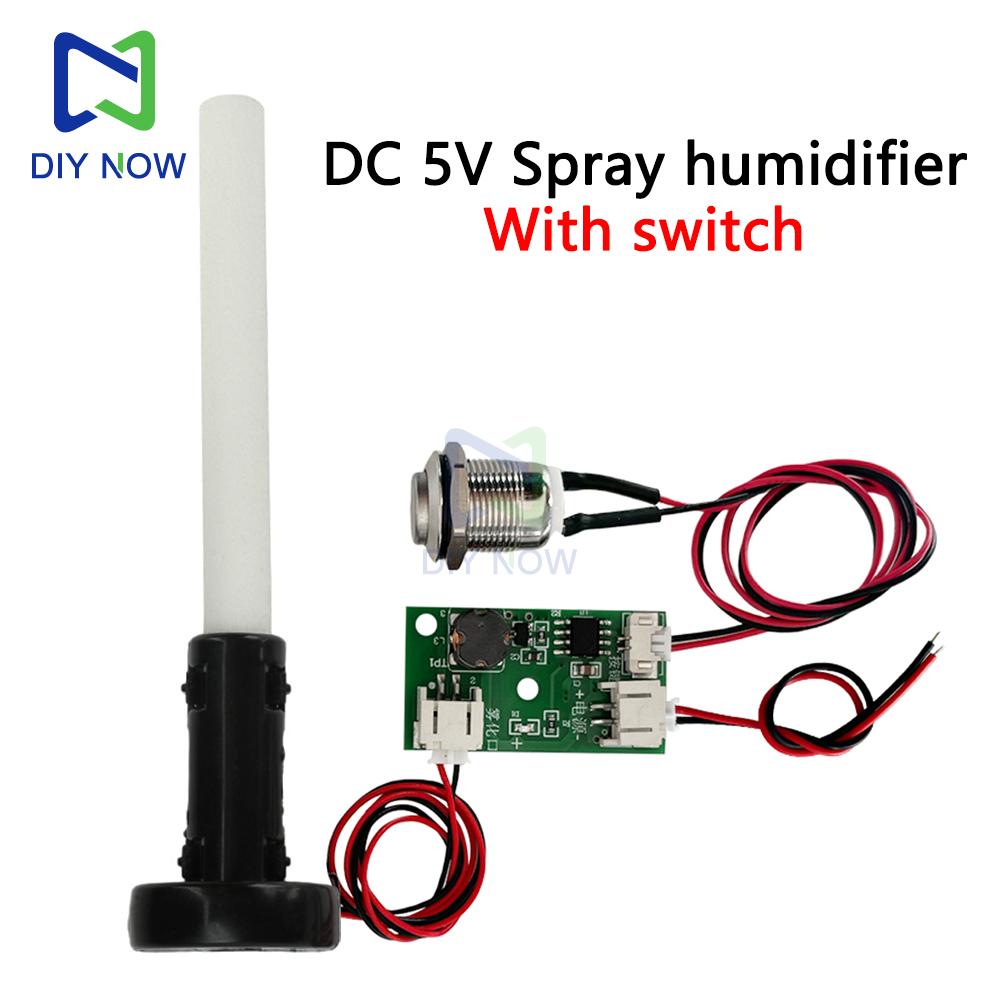

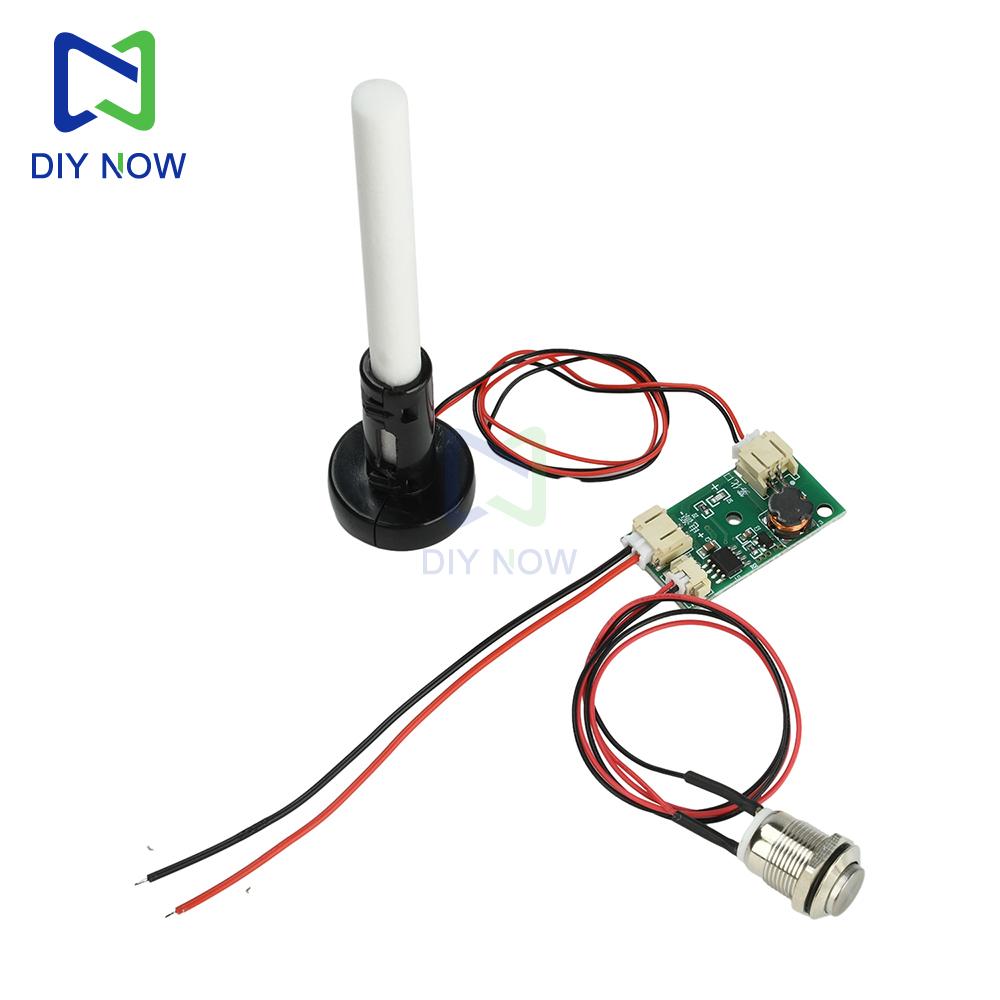

Electronic Humidifier DIY Kit with Switch DC 5V Power Supply Ready to Use Ultrasonic Atomizing Humidifier Module DIY Kit

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : DC 5V Application : Water Type : Module Brand Name : DIY NOW Operating Temperature : 0°C to 40°C Origin : Mainland China Condition : New Name : External Switch Spray Humidifier Rated Voltage : DC 5V (Power Supply) Rated Current : 300mA Power : 1.5-2W Power Port : H2.0 Atomization Frequency : 108kHz±2kHz Two Modes : Continuous and Intermittent Spraying Ultrasonic Atomization : Humidification Module

Features: 1. Support continuous and intermittent spray mode to meet different humidification requirements. 2. Ultrasonic atomization technology, delicate water mist, high efficiency, energy saving and low power consumption. 3. Built in automatic shutdown protection, making it safer and more worry free to use. 4. Modular design, convenient DIY, suitable for various scene applications. 5. Equipped with LED indicator lights, the status is clear and the operation is easy to understand. Parameter: Name: external switch spray humidifier Material: 1.2mm FR-4 Rated voltage: DC 5V (power supply) Power port: PH2.0 Button interface: PH1.25 Atomization frequency: 108KHZ ± 2KHZ Rated current: 300MA Power: 1.5-2W Size: 35mm * 18.5mm Atomization parameters: Name: Microporous Atomization Sheet Drive voltage: 5V Resonant frequency: 108-110KHz ± 5 Rated power: 2W Aperture: 4-5UM Number of perforations: 800 Silicone sleeve outer diameter: 20MM Rubber ring thickness: 3MM Steel plate diameter: 16mm Wire length: 250MM Atomizer interface: PH2.0 Atomizing film wire length: 25CM Switch wire length: 20/30CM Cotton swab: 8mm * 100mm

Spray mode: 1. Continuous spray mode: Press the first switch LED light is always on, continuous spray mode Spray all the time. After four hours of spray, automatically shut down for protection 2. Intermittent spray mode Press the switch for the second time, the LED light flashes Intermittent spray mode, spray for 10 seconds, stop spraying for 5 seconds, press Second cycle, automatic shutdown protection after 12 hours of spray 3. Shut down Press the switch for the third time

Package Include: Set 1: 1x module 1x atomizer 25cm 1x switch wire 20cm 1x 10cm power cord 1x bottle cap black bracket 1x cotton swab 8 * 100mm Set 2: 1x module 1x atomizer 25cm 1x button switch 30cm 1x 10cm power cord 1x bottle cap black bracket 1x cotton swab

Usage: 1. First, install the atomizer bracket and cotton swab 2. Connect the atomizing plate to the module atomizing plate port 3. Connect the power supply to the module power port again 4. Press the power switch 5. Spray when the atomizer meets water

Notes: 1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled 2. It is strictly prohibited to power on without connecting the atomizing plate 3. It is strictly prohibited to use fast chargers 4. It is strictly prohibited to modify modules 5. The module must not touch water 6. The all steel sheet (raised surface) contacts the cotton swab downwards to absorb water 7. Rated power input label:yes

Plug type: USB
