SecuTech simultaneous video and power over coaxial cable transmission for two VDS6500A AHD/TVI/CVI/CVBS compatible, cameras.

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

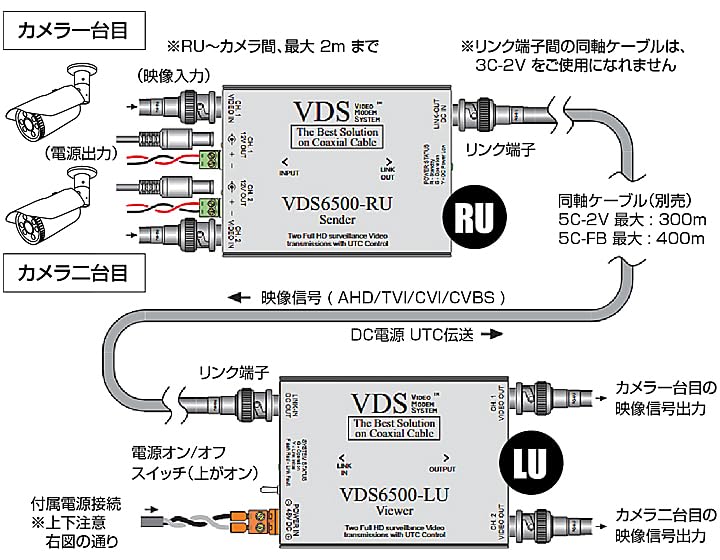

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Supports AHD signals (5MP/4MP/2MP), HD-TVI/HD-CVI signals (2MP), and CVBS signals. It also supports UTC, enabling communication with each terminal (camera). 5C-FB and 5C-2V coaxial cables can be , allowing for camera replacement using existing wiring. *3C-2V coaxial cable cannot be . *It can transmit different video signals, such as camera 1 (AHD 5MP) and camera 2 (TVI 2MP). This system can supply a total of up to 12V/4.0A of power to two cameras. It can be with infrared night vision cameras and other cameras with high current consumption. Furthermore, since there is no need to connect a separate power supply, it is ideal for locations where the camera itself cannot provide power. *Transmission distance and power supply capacity may vary depending on the cable . This product is protected from lightning surges by having a built-in surge protector on the coaxial cable terminal (link) side for long-distance wiring. *The surge protector does not guarantee 100% protection of the equipment from lightning surges. It supports both horizontal and vertical placement, allowing you to secure it according to the conditions of the installation location. Additionally, the power adapter comes with mounting brackets, so it can be mounted on a wall. *Precautions for use: • This product is for indoor use only. When installing it outdoors, such as when connecting an outdoor camera, please take appropriate protective measures. • Transmission distance and power supply may vary depending on the quality of the cable . • This product cannot be with single-cable cameras. ■ VDS6500A-RU Sender (Camera-side unit) Camera video input terminals: BNCJ ×2 Camera power output terminal DC12V: DCJ (inner diameter: φ 2.1mm) / terminal block x2 Link terminal: BNCJ ×1 Power supply: DC 48V (supplied via link cable) External dimensions: Approximately 25 (height) x 75 (width) x 100 (depth) mm Weight: approx. 198g Operating environment: -10℃ to +45℃ (humidity: 20% to 90%) ■ VDS6500A-LU Viewer (Recorder-side unit) Video signal output terminals: BNCJ ×2 Power input terminal: Terminal block ×1 (for included power input) Link terminal: BNCJ ×1 Power supply: DC48V 1.36A (included power adapter) External dimensions: Approximately 25 (height) x 75 (width) x 100 (depth) mm Weight: Approx. 195g Operating environment: -10℃ to +40℃ (humidity: 20% to 90%) ■ Common to all products Installation location: Indoors Video Channels: 2ch, UTC communication possible (communication may not be possible depending on product compatibility) Video input signal: AHD: 5MP / 4MP / 2MP HD-TVI / HD-CVI: 2MP CVBS Inter-link cable: Coaxial cable, 75Ω, 5C-2V or higher recommended (sold separately) Link-to-link transmission distance: 5C-2V: Maximum 300m 5C-FB: Maximum 400m *3C-2V cannot be . *Maximum distance between camera and RU is 2m. Surge protector: GDT (gas discharge tube) and TVS diode, built into both ends of the BNC terminal. Power consumption: Approximately 9W (when RU + LU is operating) *May increase depending on the specifications of the connected camera. Accessories: Original instruction manual (warranty card) x 1 DC48V power adapter and adapter cable (1 each) Camera power cable x2 (85cm long, DC plugs on both ends) RU/LU Fixing Brackets/Screws × 4 each Warranty period: 1 year
